Plastic hoods black and metallized with screw locking and side cable output

  • Hoods as single parts
Download product sheet

Number Of Poles

  • 9
  • 15
  • 25
  • 37
  • 50

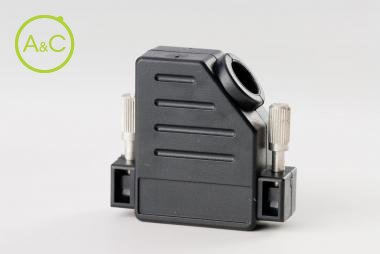

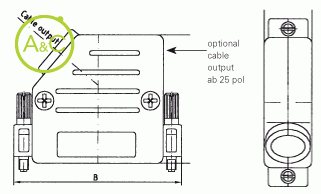

Article Number 47 09 0B 25 T 000 47 09 0M 25 T 000
Number Of Contacts 9 9
Upper Temperature +90 °C +90 °C
Lower Temperature -20 °C -20 °C
Plating Nickel plated copper Nickel plated copper
Thread UNC 4-40 UNC 4-40
Remark* If you need coloured hoods please replace the B in the article number by R,Y,H,G or F If you need coloured hoods please replace the B in the article number by R,Y,H,G or F
Remark** Multi opening possible Multi opening possible
Material ABS UL 94-V0 ABS UL 94-V0
Extra Information Possibility to insert in 3 TE grid integrated anti-dust cover Possibility to insert in 3 TE grid integrated anti-dust cover
Hood Version black with 25 mm thumb screw Metalllized with 25 mm slotted screw
Colour* R= Red Y = Yellow H= Blue G = Grey F= Green R= Red Y = Yellow H= Blue G = Grey F= Green
Locking Style Knurled screws Knurled screws
Cable Exit Angled 1x40° ** Angled 1x40° **
Cable Fixing Clamp intern (al) Clamp intern (al)
Cable Diameter Internal Cable Clamp 4-10 4-10
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Characteristics differ between variants of a connector
Accessoires
KT KB
Cable bushing for series 17,47
KT MB
Cable bushing for series 17,47
KT GB
Cable bushing for series 17,47
KK 33 B
Cable bushings
KK 43 B
Cable bushings
KK 53 B
Cable bushings
KK 33 M
Cable bushings
KK 43 M
Cable bushings
KK 53 M
Cable bushings
KG 35 B
Cable bushings
KG 50 B
Cable bushings
KG 63 B
Cable bushings
KG 76 B
Cable bushings
KG 83 B
Cable bushings
KG 90 B
Cable bushings
KG 35 M
Cable bushings
KG 50 M
Cable bushings
KG 63 M
Cable bushings
KG 76 M
Cable bushings
KG 83 M
Cable bushings
KG 90 M
Cable bushings
KL 103 B
Cable bushings
KL 93 B
Cable bushings
KL 93 M
Cable bushings
KL 103 M
Cable bushings
