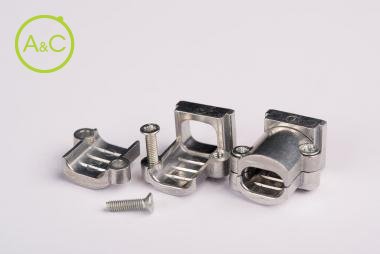

Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
Do you have any questions about this product?
More info on this brand:
Provertha
Provertha
Number Of Poles Of Hoods
- 9-37

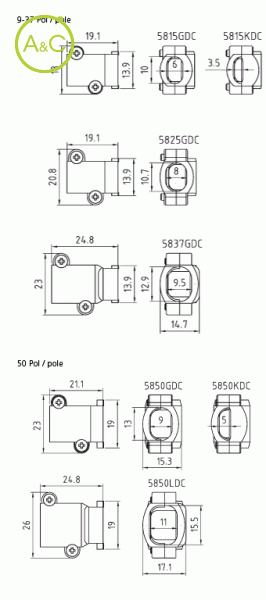

| Article Number | 5815GDC | 5815KDC | 5825GDC | 5837GDC |
| Cable Diameter Range | 4-14 mm | 4-14 mm | 4-14 mm | 4-14 mm |
| Number Of Contacts | 9-37 | 9-37 | 9-37 | 9-37 |
| Cable Diameter | 4-7 mm | 7-10 mm | 9-12 mm | 11-14 mm |
| Windows For Wires | 65 | 65 | 75 | 85 |
Characteristics differ between variants of a connector
