Adapter cases

Empty cases

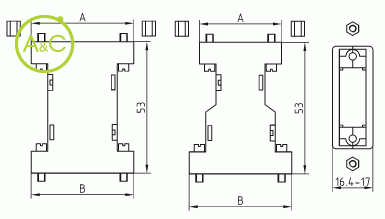

67 09 09 B

67 09 09 B

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Number Of Poles

09-09
09-15
09-25
15-15
25-25

Article Number	67 09 09 B	67 09 09 M	67 09 09 G
Number Of Contacts	09-09	09-09	09-09
Upper Temperature	+90 °C	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40	UNC 4-40
Material	ABS	ABS	ABS
Extra Information	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design
Hood Version	Black	Metallized	Grey
Locking Style	Knurled screw	Knurled screw	Knurled screw
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated	ST Zinc plated

Article Number	67 09 15 B	67 09 15 M	67 09 15 G
Number Of Contacts	09-15	09-15	09-15
Upper Temperature	+90 °C	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40	UNC 4-40
Material	ABS	ABS	ABS
Extra Information	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design
Hood Version	Black	Metallized	Grey
Locking Style	Knurled screw	Knurled screw	Knurled screw
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated	ST Zinc plated

Article Number	67 09 25 B	67 09 25 M	67 09 25 G
Number Of Contacts	09-25	09-25	09-25
Upper Temperature	+90 °C	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40	UNC 4-40
Material	ABS	ABS	ABS
Extra Information	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design
Hood Version	Black	Metallized	Grey
Locking Style	Knurled screw	Knurled screw	Knurled screw
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated	ST Zinc plated

Article Number	67 15 15 B	67 15 15 M	67 15 15 G
Number Of Contacts	15-15	15-15	15-15
Upper Temperature	+90 °C	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40	UNC 4-40
Material	ABS	ABS	ABS
Extra Information	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design
Hood Version	Black	Metallized	Grey
Locking Style	Knurled screw	Knurled screw	Knurled screw
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated	ST Zinc plated

Article Number	67 25 25 B	67 25 25 M	67 25 25 G
Number Of Contacts	25-25	25-25	25-25
Upper Temperature	+90 °C	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40	UNC 4-40
Material	ABS	ABS	ABS
Extra Information	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design	Empty case for own assembling of adapters two-parts quality plastic case Large space for your wiring Snap-together design
Hood Version	Black	Metallized	Grey
Locking Style	Knurled screw	Knurled screw	Knurled screw
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated	ST Zinc plated

Characteristics differ between variants of a connector
