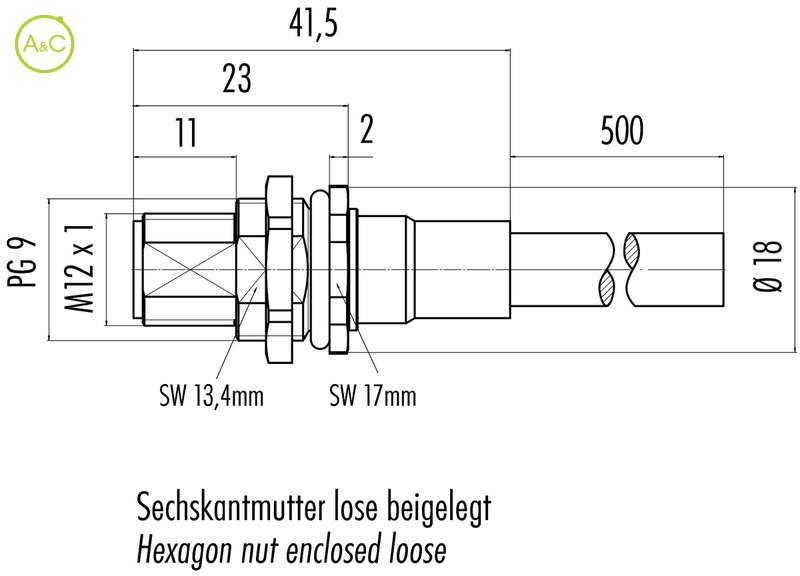

Male panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 5
- 8
| Article Number | 70 3441 287 05 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 5 contacts |
| Connector Locking System | Screw (M12-A) |
| Termination | PUR-cable |
| Wire Section | 0.25 mm² |
| Cable Length | 0.5 mm |
| Protection Degree | IP68* |
| Mating Cycles | >100 times |
| Upper Temperature | 70 °C |
| Lower Temperature | -5 °C |
| Rated Voltage | 125 |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Material Of Housing | Brass/zinc diecasting nickel plated |
| Cable Diameter | 5,3 mm |
| Fixing Thread | PG 9 |
| Remark** | *When built-in, connected and locked with counterpart |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
