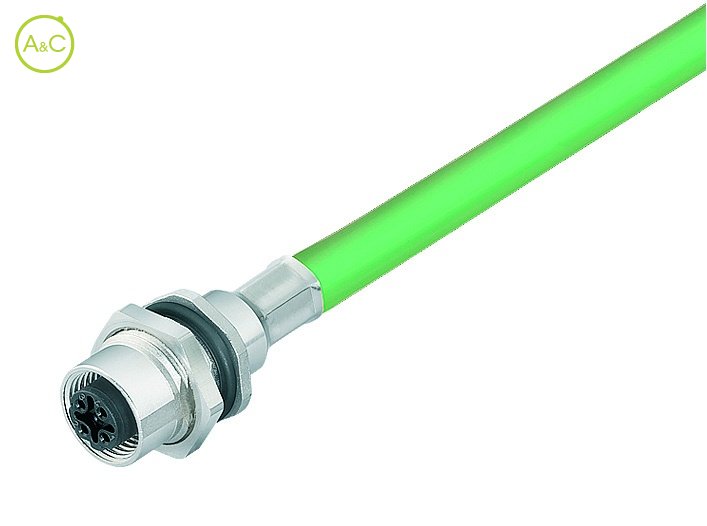

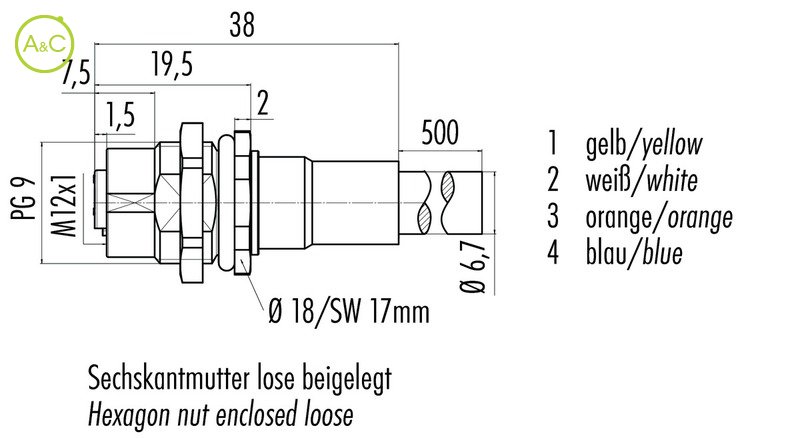

Female panel mount connector

  • Front fastened, with PROFINET-cable, shielded

Number Of Poles

  • 4
Article Number 70 3734 706 04
Connector Diameter 18 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-D)
Termination PUR-cable
Wire Section 0.25 mm²
Cable Length 0.5 mm
Protection Degree IP68*
Mating Cycles >100 times
Upper Temperature +60 °C
Lower Temperature -20 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Brass / Zinc diecasting nickel plated
Cable Diameter 6,7 mm
Fixing Thread PG9
Remark** *When built-in, connected and locked with counterpart
Product sheet Download product sheet
Characteristics differ between variants of a connector
