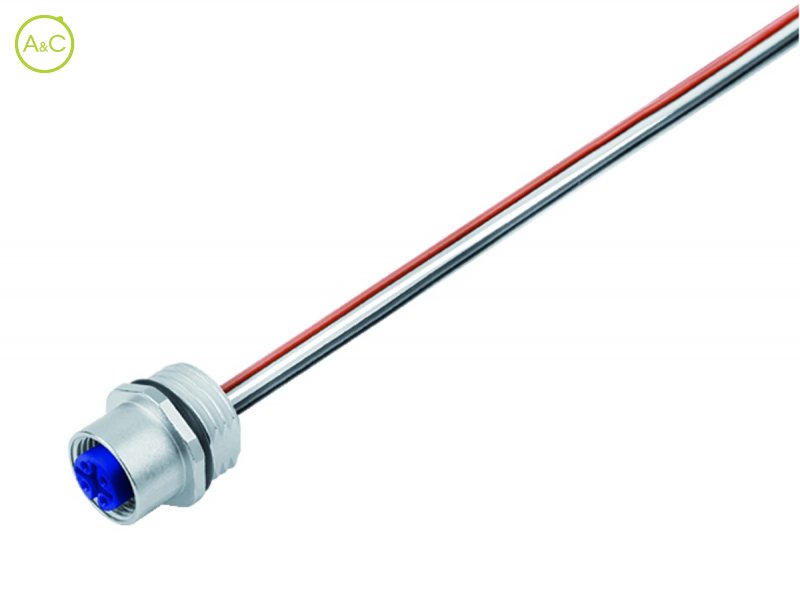

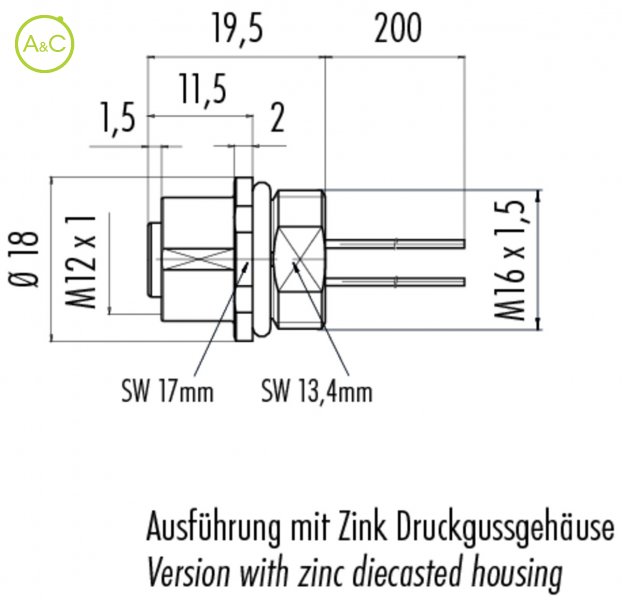

Female panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 4
- 5
| Article Number | 76 0232 0011 00004 0200 | 76 0232 0011 00104 0200 | 76 0232 0011 00204 0200 | 76 0232 0011 00304 0200 | 76 0232 0011 00404 0200 | 76 0232 0011 00504 0200 | 76 0232 0011 00604 0200 |
| Old Article Number | 09 3432 700 04 | ||||||
| Connector Diameter | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Number Of Contacts | 4 contacts | 4 contacts | 4 contacts | 4 contacts | 4 contacts | 4 contacts | 4 contacts |
| Connector Locking System | Screw (M12-A) | Screw (M12-A) | Screw (M12-A) | Screw (M12-A) | Screw (M12-A) | Screw (M12-A) | Screw (M12-A) |
| Termination | Single wires | Single wires | Single wires | Single wires | Single wires | Single wires | Single wires |
| Wire Section | 0.25 mm² | 0.25 mm² | 0.25 mm² | 0.25 mm² | 0.25 mm² | 0.25 mm² | 0.25 mm² |
| Protection Degree | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Mating Cycles | >50 times | >50 times | >50 times | >50 times | >50 times | >50 times | >50 times |
| Upper Temperature | +85 °C | +85 °C | +85 °C | +85 °C | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Rated Voltage | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Rated Impuls Voltage | 2500 V | 2500 V | 2500 V | 2500 V | 2500 V | 2500 V | 2500 V |
| Pollution Degree | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Overvoltage Categorie | II | II | II | II | II | II | II |
| Material Group | II | II | II | II | II | II | II |
| Rated Current (40°) | 4 A | 4 A | 4 A | 4 A | 4 A | 4 A | 4 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ | 3 mΩ | 3 mΩ | 3 mΩ | 3 mΩ | 3 mΩ |
| Material Of Contact | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) |
| Plating | Au (Gold) | Au (Gold) | Au (Gold) | Au (Gold) | Au (Gold) | Au (Gold) | Au (Gold) |
| Material Of Insert | PA | PA | PA | PA | PA | PA | PA |
| Material Of Housing | Zinc diecasting nickel plated | Zinc diecasting nickel plated | Zinc diecasting nickel plated | Zinc diecasting nickel plated | Zinc diecasting nickel plated | Zinc diecasting nickel plated | Zinc diecasting nickel plated |
| Fixing Thread | M16 x 1,5 | M16 x 1,5 | M16 x 1,5 | M16 x 1,5 | M16 x 1,5 | M16 x 1,5 | M16 x 1,5 |
| Product sheet | Download product sheet | Download product sheet | Download product sheet | Download product sheet | Download product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
