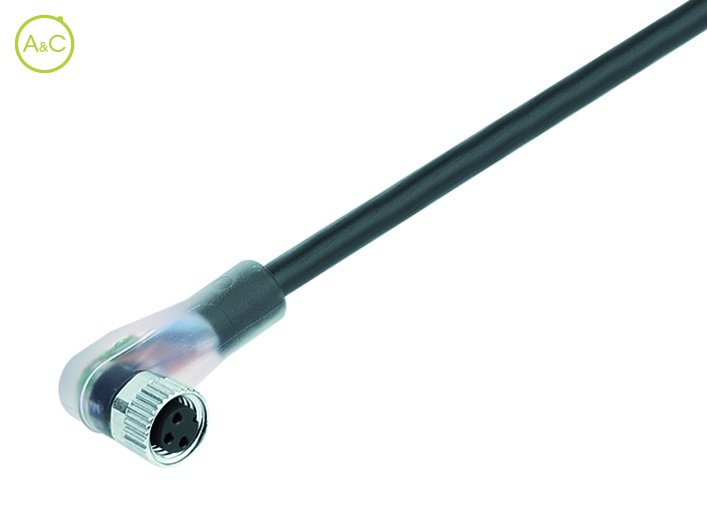

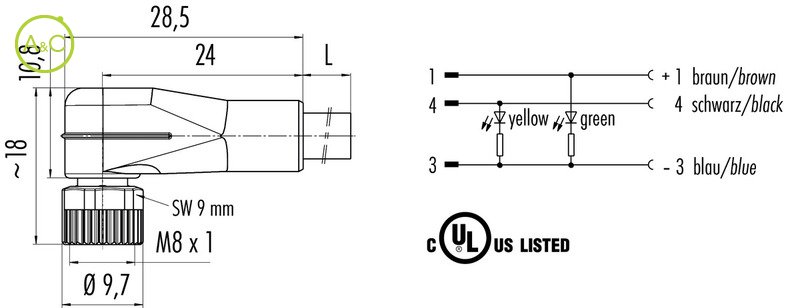

Female angled connector

  • Moulded, screw version, M8x1, LED

Number Of Poles

  • 3
Article Number 77 3608 0000 20003 0500 77 3608 0000 50003 0500
Old Article Number 79 3404 45 03 79 3404 55 03
Connector Diameter 11.5 mm 11.5 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M8) Screw (M8)
Termination Crimp, moulded Crimp, moulded
Wire Section 0.25 mm² 0.25 mm²
Cable Length 5 mm 5 mm
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 60 60
Rated Impuls Voltage 800 V 800 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Cable Diameter 4,5 mm 4,5 mm
Cable Jacket Material PVC PUR
Insulation Wire PVC PVC
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
