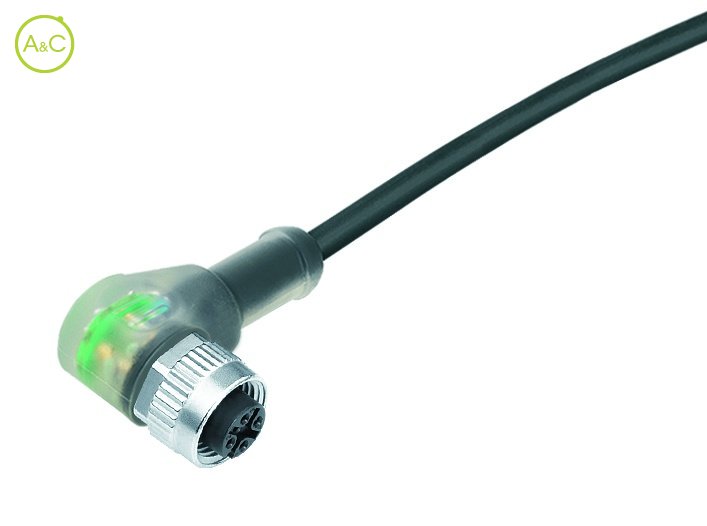

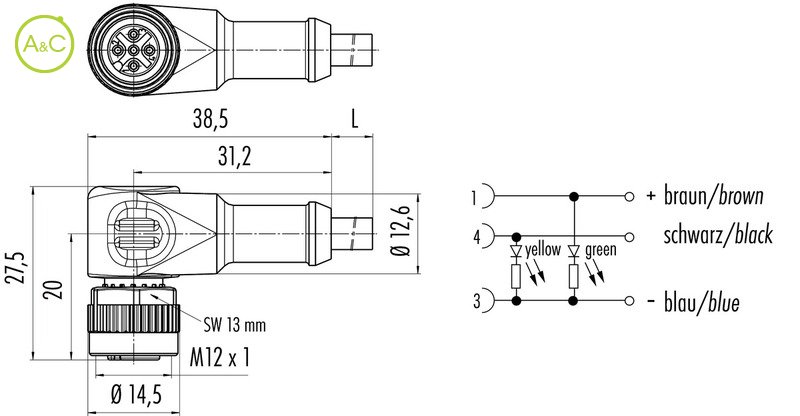

Female angled connector

  • Moulded, with LED PNP normally open

Number Of Poles

  • 3
Article Number 77 3634 0000 20003 0500 77 3634 0000 50003 0500
Old Article Number 79 3436 15 04 79 3436 35 04
Connector Diameter 14.5 mm 14.5 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Crimp, moulded Crimp, moulded
Wire Section 0.34 mm² 0.34 mm²
Cable Length 5 mm 5 mm
Protection Degree IP68 IP68
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 36 36
Rated Impuls Voltage 500 V 500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Cable Diameter 4,5 mm 4,5 mm
Cable Jacket Material PVC PUR
Insulation Wire PVC PVC
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
