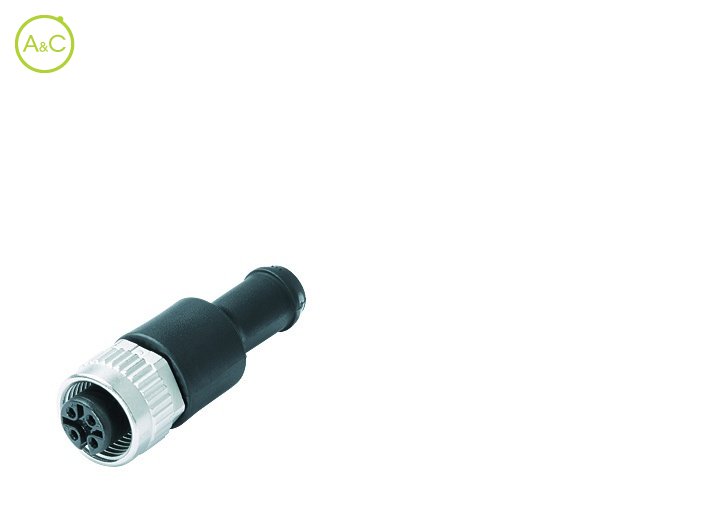

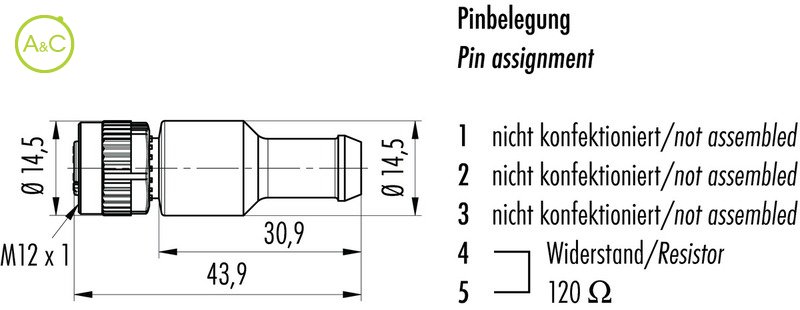

Female terminating connector

  • CAN-bus

Number Of Poles

  • 5
Article Number 77 9840 0000 00005
Connector Diameter 14.5 mm
Number Of Contacts 5 contacts
Connector Locking System Screw (M12-A)
Termination Crimp, moulded
Wire Section 0,1 to 0,75 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 60
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PUR
Material Of Housing PUR
Cable Diameter 7,2 mm
Product sheet Download product sheet
Characteristics differ between variants of a connector
