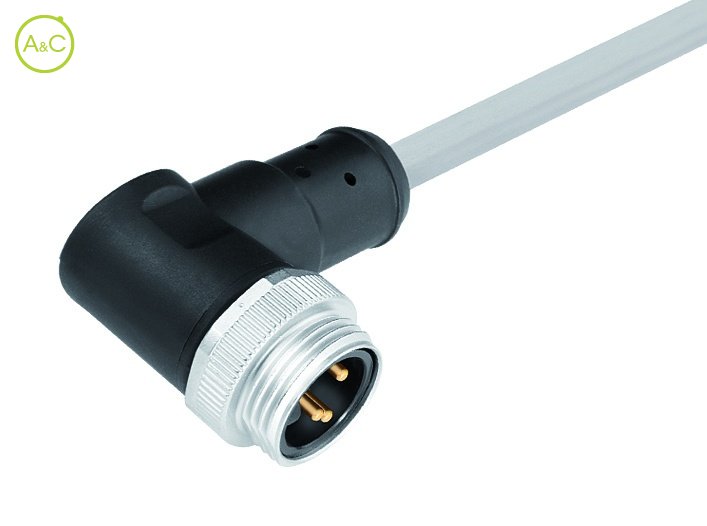

Male angled connector

Number Of Poles

  • 3+PE
  • 4+PE
  • 5+PE
Article Number 79 2455 20 03

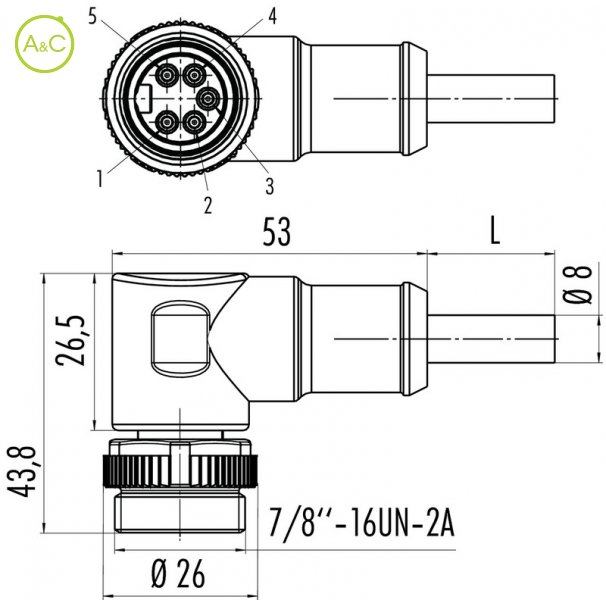

Connector Diameter 26 mm
Number Of Contacts 3+PE contacts
Connector Locking System Screw (7/8"-16 UN)
Termination Crimp
Wire Section 1.5 mm²
Cable Length 2 mm
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +80 °C
Lower Temperature -25 °C
Rated Voltage 300
Rated Impuls Voltage 4000 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 12 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PUR
Material Of Housing PUR
Cable Diameter 7,4 mm
Cable 3 x 1,5 PUR mm²
Cable Jacket Material PUR
Insulation Wire TPM
Product sheet Download product sheet
Characteristics differ between variants of a connector
