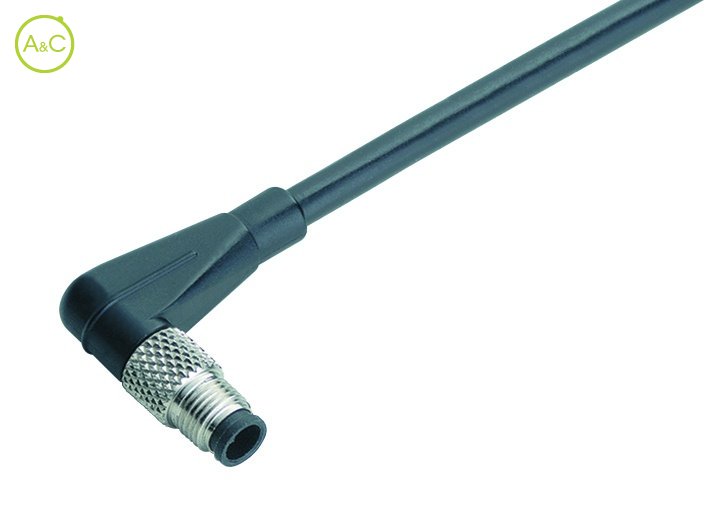

Male angled connector

  • Moulded, M5 x 0,5

Number Of Poles

  • 3
  • 4
Article Number 79 3103 55 03 79 3103 35 03
Connector Diameter 6 mm 6 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M5) Screw (M5)
Termination Crimp, moulded Crimp, moulded
Wire Section 0.14 mm² 0.25 mm²
Cable Length 5 mm 5 mm
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +80 °C +80 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 60 60
Rated Impuls Voltage 800 V 800 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group I I
Rated Current (40°) 1 A 1 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Cable Diameter 3,1 mm 3,7 mm
Cable Jacket Material PUR PUR
Insulation Wire PVC PVC
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
