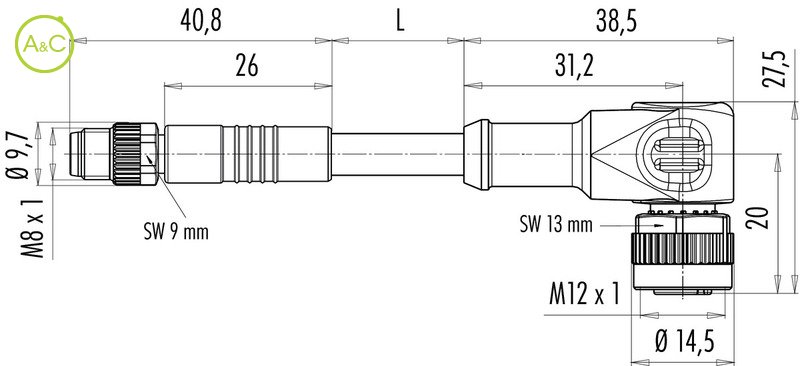

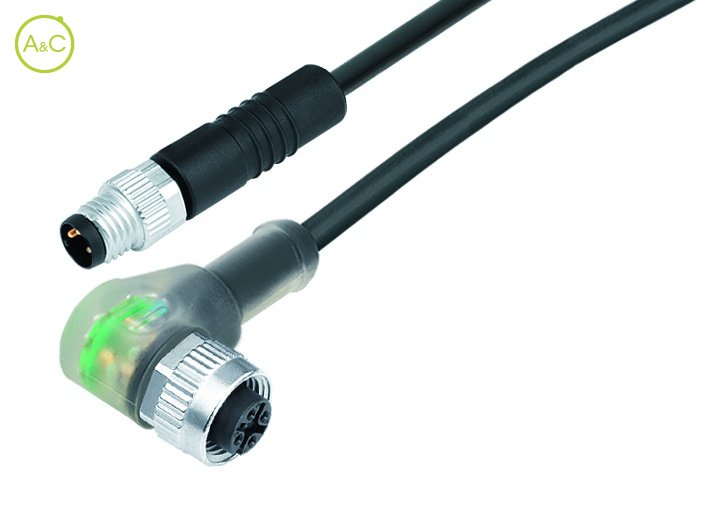

Male cable connector M8x1 - Female angled connector with LED PNP NOC M12x1

Number Of Poles

  • 3
  • 4
Article Number 79 5104 10 03 79 5104 20 03
Connector Diameter 9,7 - 14,5 mm 9,7 - 14,5 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw Screw
Termination Crimp, moulded Crimp, moulded
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 10-30 10-30
Rated Impuls Voltage 500 V 500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact Pin CuZn (Brass), Socket (Bronze) Pin CuZn (Brass), Socket (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Cable Diameter 4,5 mm 4,5 mm
Cable 3x0,25 PUR mm² 3x0,25 PUR mm²
Cable Jacket Material PUR PUR
Insulation Wire PVC PVC
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
