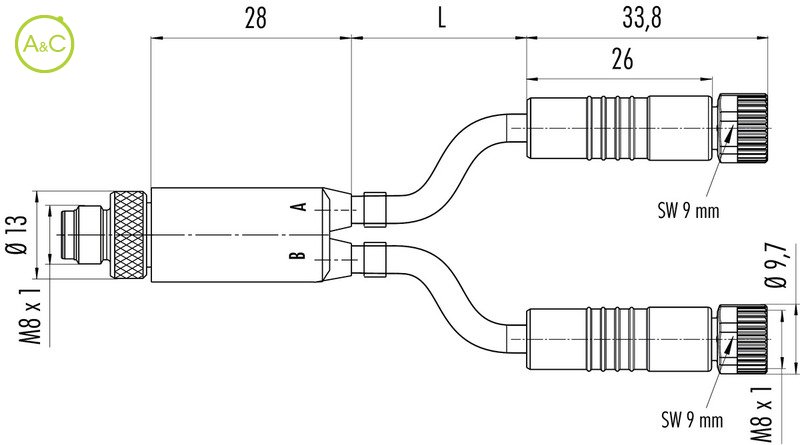

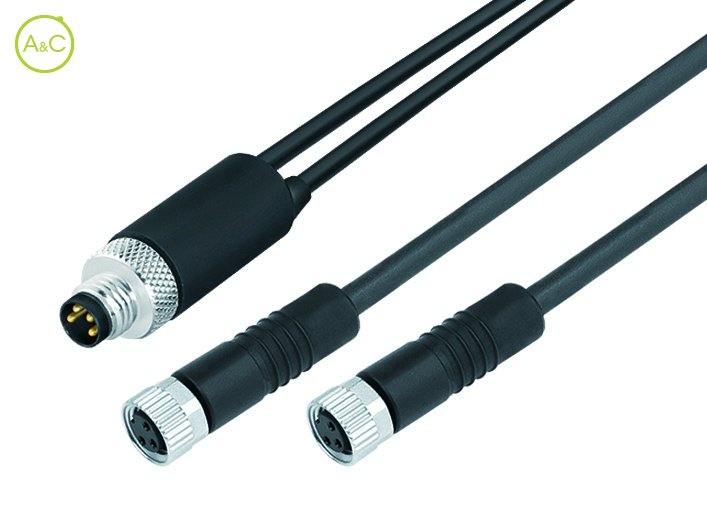

Duo connector M8 - 2 female connectors M8
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 4/3
| Article Number | 79 5203 03 04 | 79 5203 06 04 | 79 5203 10 04 |
| Connector Diameter | 13 mm | 13 mm | 13 mm |
| Number Of Contacts | 4/3 contacts | 4/3 contacts | 4/3 contacts |
| Connector Locking System | Screw | Screw | Screw |
| Termination | Crimp, moulded | Crimp, moulded | Crimp, moulded |
| Wire Section | 0.25 mm² | 0.25 mm² | 0.25 mm² |
| Protection Degree | IP67 | IP67 | IP67 |
| Mating Cycles | >100 times | >100 times | >100 times |
| Upper Temperature | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C | -25 °C |
| Rated Voltage | 60 | 60 | 60 |
| Rated Impuls Voltage | 1500 V | 1500 V | 1500 V |
| Pollution Degree | 3 | 3 | 3 |
| Overvoltage Categorie | II | II | II |
| Material Group | II | II | II |
| Rated Current (40°) | 4 A | 4 A | 4 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ | 3 mΩ |
| Material Of Contact | Pin CuZn (Brass), Socket (Bronze) | Pin CuZn (Brass), Socket (Bronze) | Pin CuZn (Brass), Socket (Bronze) |
| Plating | Au (Gold) | Au (Gold) | Au (Gold) |
| Material Of Insert | PUR | PUR | PUR |
| Material Of Housing | PUR | PUR | PUR |
| Cable Diameter | 3 mm | 3 mm | 3 mm |
| Cable | 3 x 0,14 mm² | 3 x 0,14 mm² | 3 x 0,14 mm² |
| Cable Jacket Material | PUR | PUR | PUR |
| Insulation Wire | PVC | PVC | PVC |
| Product sheet | Download product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
