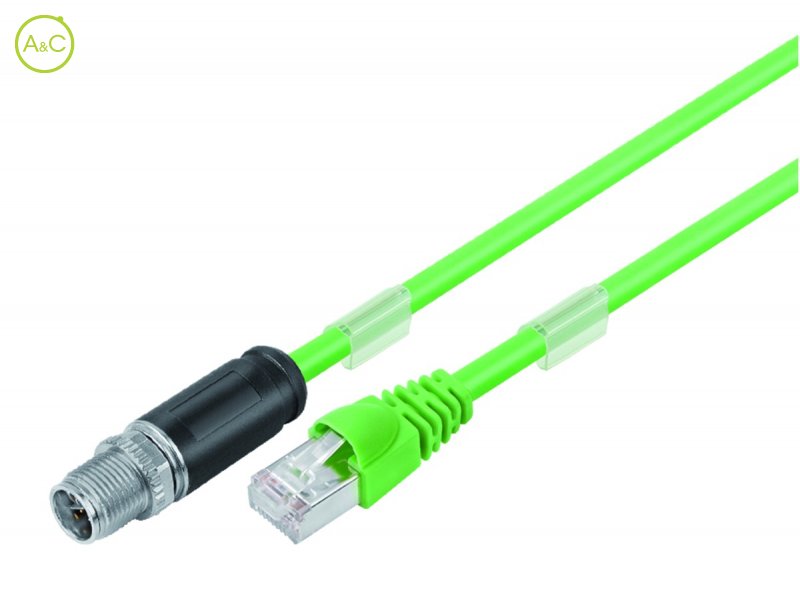

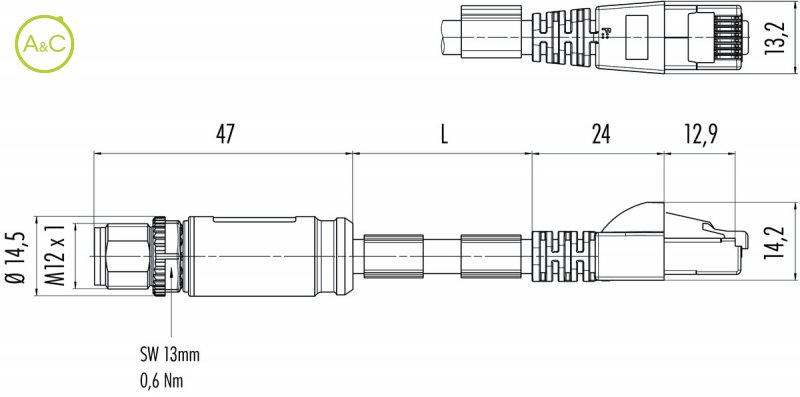

Connecting cable, male cable connector

  • M12 x 1, RJ45, PUR cable, shielded

Number Of Poles

  • 8
Article Number 79 9723 020 08 79 9723 050 08 79 9723 100 08
Connector Diameter 14.5 mm 14.5 mm 14.5 mm
Number Of Contacts 8 contacts 8 contacts 8 contacts
Connector Locking System Screw (M12-X) Screw (M12-X) Screw (M12-X)
Termination Crimp, moulded Crimp, moulded Crimp, moulded
Protection Degree IP67 IP67 IP67
Mating Cycles >100 times >100 times >100 times
Upper Temperature +85 °C +85 °C +85 °C
Lower Temperature -40 °C -40 °C -40 °C
Rated Voltage 50 AC, 60 DC 50 AC, 60 DC 50 AC, 60 DC
Pollution Degree 3 3 3
Overvoltage Categorie II II II
Material Group II II II
Rated Current (40°) 0.5 A 0.5 A 0.5 A
Max. Contact Resistance 10 mΩ 10 mΩ 10 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PA PA PA
Material Of Housing PUR PUR PUR
Cable Diameter 6,2 mm 6,2 mm 6,2 mm
Cable Jacket Material PUR green PUR green PUR green
Insulation Wire PE PE PE
Product sheet Download product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
