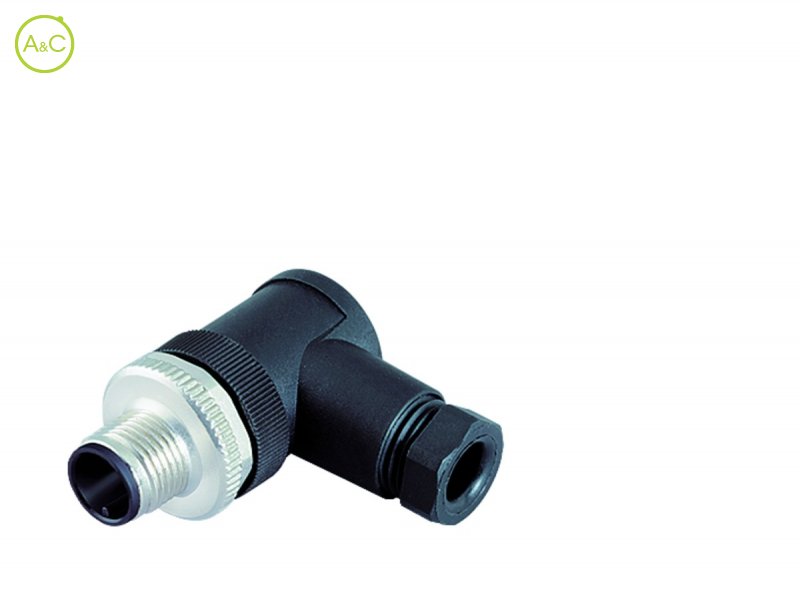

Male angled connector

  • Crimp termination

Number Of Poles

  • 4
Article Number 99 0529 24 04 99 0529 52 04

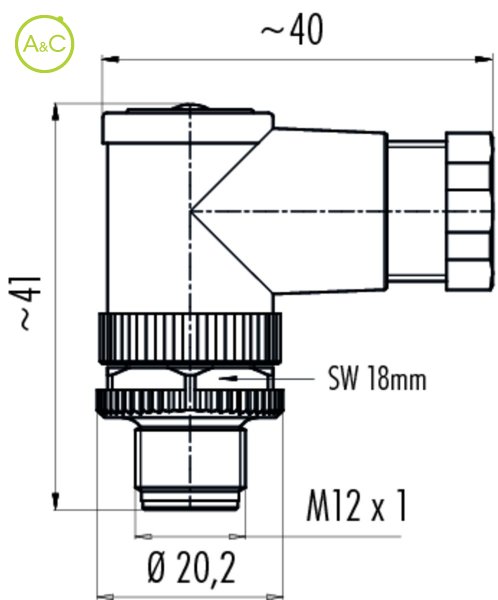

Connector Diameter 20.2 mm 20.2 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Crimp Crimp
Wire Section 0,34-1,5 mm² 0,34-1,5 mm²
Protection Degree IP67 IP67
Mating Cycles >50 times >50 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Wire Gauge 22-16 AWG 22-16 AWG
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
