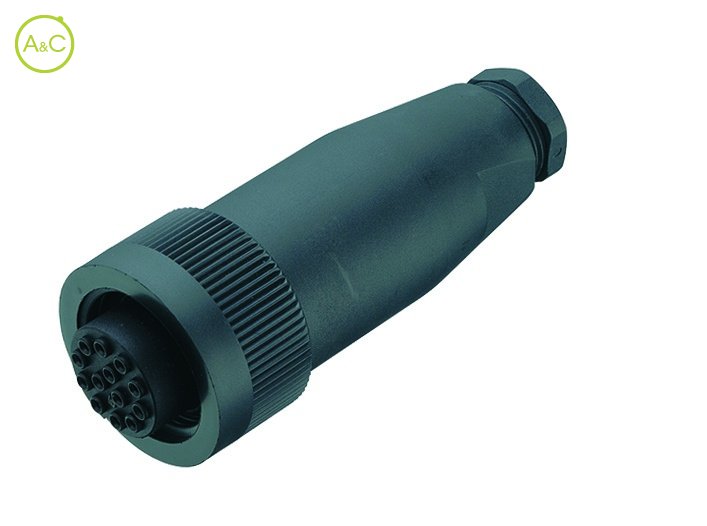

Female cable connector

Number Of Poles

  • 4+PE
  • 12+PE
  • 24
Article Number 99 0710 00 05 99 0710 02 05 99 0710 03 05

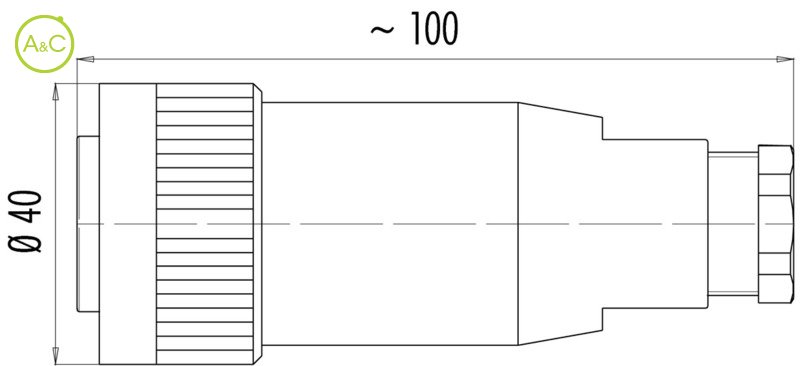

Connector Diameter 40 mm 40 mm 40 mm
Number Of Contacts 4+PE contacts 4+PE contacts 4+PE contacts
Connector Locking System Screw (RD30) Screw (RD30) Screw (RD30)
Termination Screw Screw Screw
Wire Section 2.5 mm² 2.5 mm² 2.5 mm²
Protection Degree IP65 IP65 IP65
Mating Cycles >500 times >500 times >500 times
Upper Temperature +100 °C +100 °C +100 °C
Lower Temperature -40 °C -40 °C -40 °C
Rated Voltage 400 400 400
Rated Impuls Voltage 6000 V 6000 V 6000 V
Pollution Degree 3 3 3
Overvoltage Categorie III III III
Material Group III III III
Rated Current (40°) 20 A 20 A 20 A
Max. Contact Resistance 5 mΩ 5 mΩ 5 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze) CuSn (Bronze)
Plating Ag (Silver) Ag (Silver) Ag (Silver)
Material Of Insert PA (UL 94 HB) PA (UL 94 HB) PA (UL 94 HB)
Material Of Housing PA (UL 94 V-0) PA (UL 94 V-0) PA (UL 94 V-0)
Cable Outlet 10-12 mm 12-14 mm 14-18 mm
Product sheet Download product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
