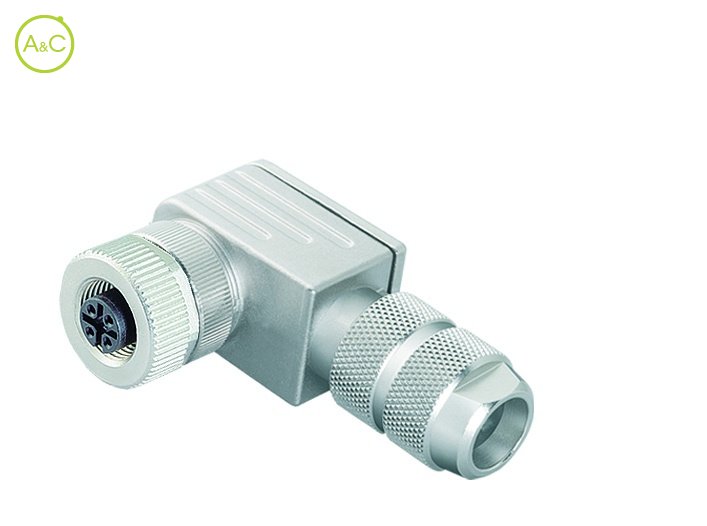

Female angled connector

  • Shieldable, wire clamp connection, iris type spring

Number Of Poles

  • 5
Article Number 99 1534 820 05

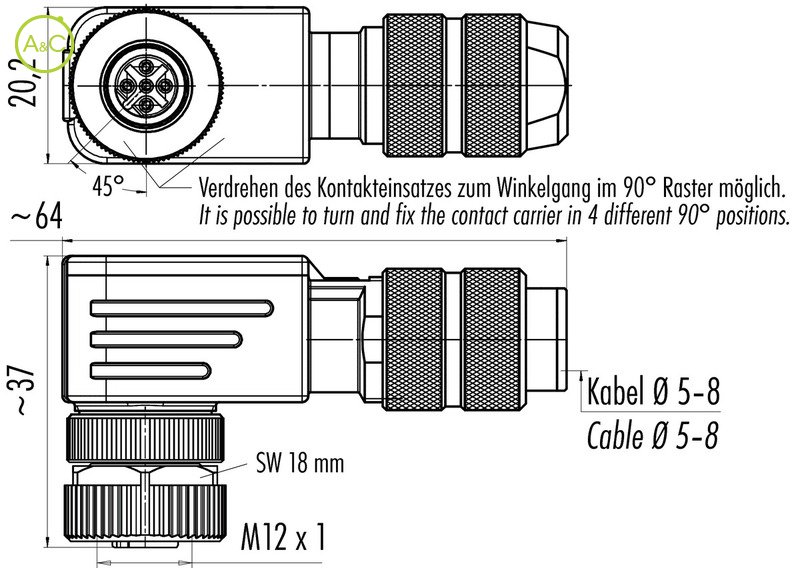

Connector Diameter 20.2 mm
Number Of Contacts 5 contacts
Connector Locking System Screw (M12-B)
Termination Wire clamp
Wire Section 0.5 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Zinc diecasting nickel plated
Cable Outlet 5-8 mm
Product sheet Download product sheet
Characteristics differ between variants of a connector
