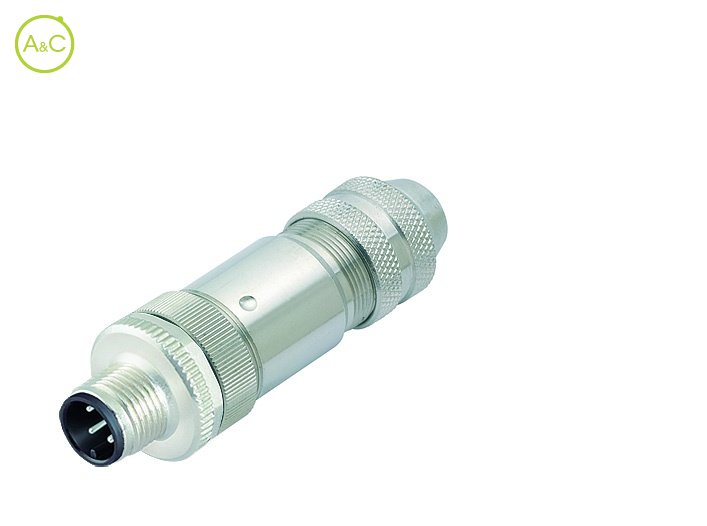

Male cable connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 5
| Article Number | 99 1535 810 05 | 99 1535 910 05 |

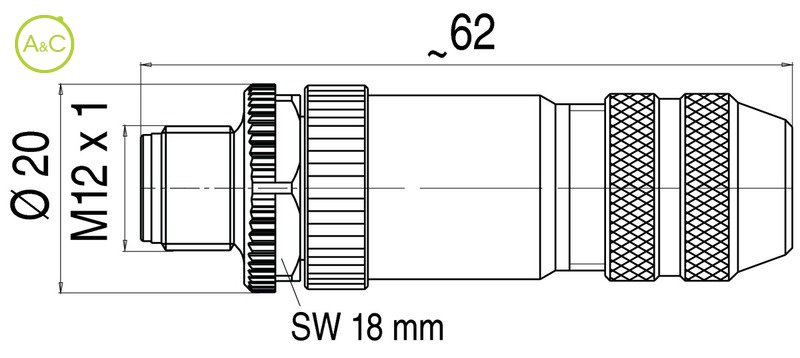

| Connector Diameter | 20 mm | 20 mm |
| Number Of Contacts | 5 contacts | 5 contacts |
| Connector Locking System | Screw (M12-B) | Screw (M12-B) |
| Termination | Wire clamp | Wire clamp |
| Wire Section | 0.5 mm² | 0.5 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >100 times | >100 times |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 125 | 125 |
| Rated Impuls Voltage | 1500 V | 1500 V |
| Pollution Degree | 3 | 3 |
| Overvoltage Categorie | II | II |
| Material Group | III | III |
| Rated Current (40°) | 4 A | 4 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PA | PA |
| Material Of Housing | Zinc diecasting nickel plated, stainless steel 1.4404 | Zinc diecasting nickel plated, stainless steel 1.4404 |
| Product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
