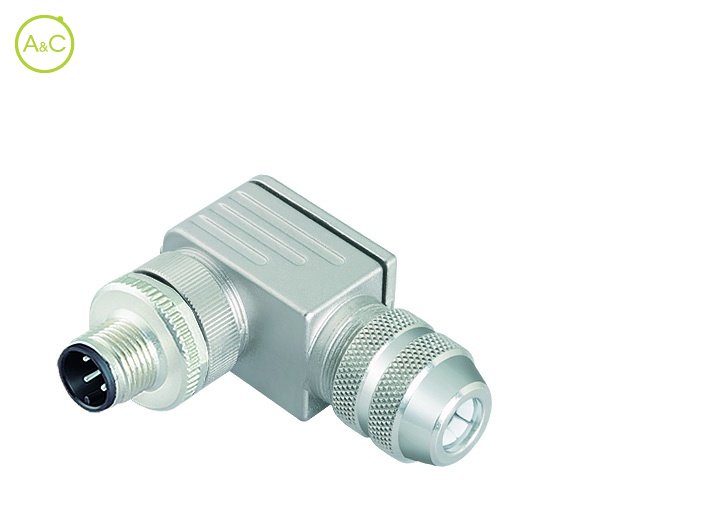

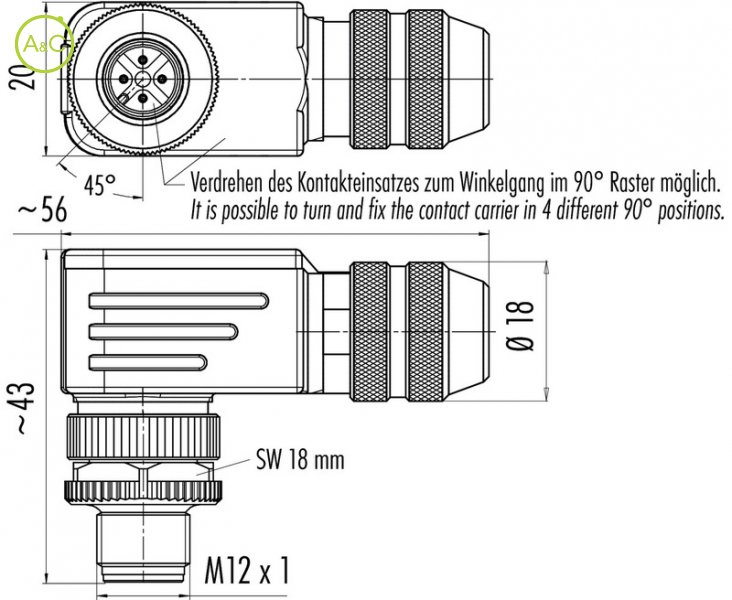

Male angled connector

  • Shieldable, with wire clamp connection

Number Of Poles

  • 5
Article Number 99 1535 820 05 99 1535 920 05
Connector Diameter 20 mm 20 mm
Number Of Contacts 5 contacts 5 contacts
Connector Locking System Screw (M12-B) Screw (M12-B)
Termination Wire clamp Wire clamp
Wire Section 0.5 mm² 0.5 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 125 125
Rated Impuls Voltage 1500 V 1500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing Zinc diecasting nickel plated Zinc diecasting nickel plated
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
