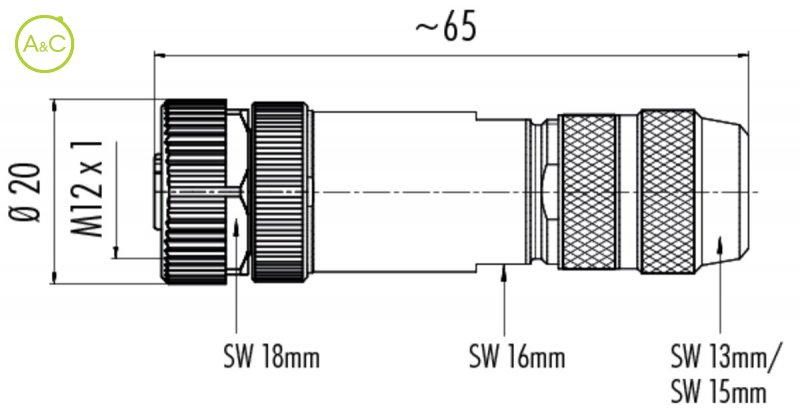

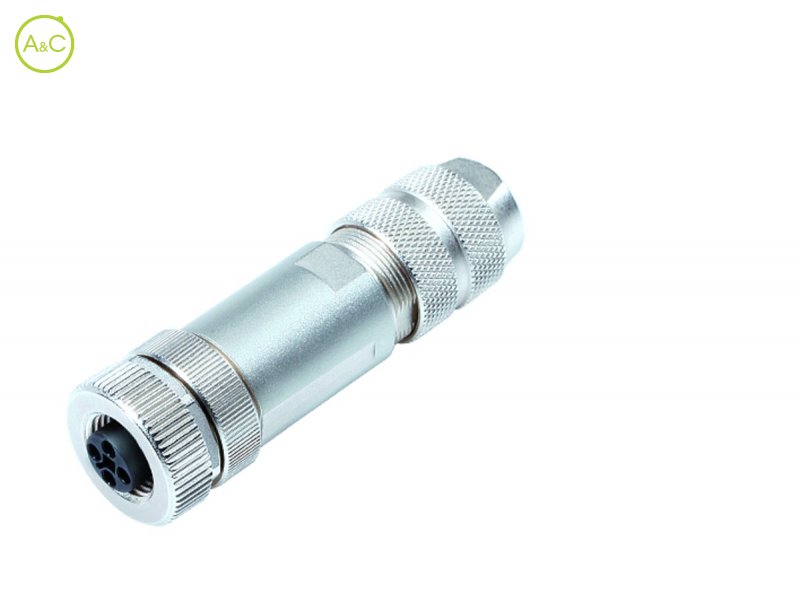

Female cable connector

  • Power, S-coding
  • Shieldable

Number Of Poles

  • 4
Article Number 99 1632 814 04 99 1632 812 04
Connector Diameter 20 mm 20 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-T) Screw (M12-T)
Termination Removable screw Removable screw
Wire Section 1.5 mm² 1.5 mm²
Protection Degree IP67 IP67
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 63 63
Rated Impuls Voltage 1500 V 1500 V
Pollution Degree 3 3
Overvoltage Categorie III III
Material Group III III
Rated Current (40°) 12 A 12 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
