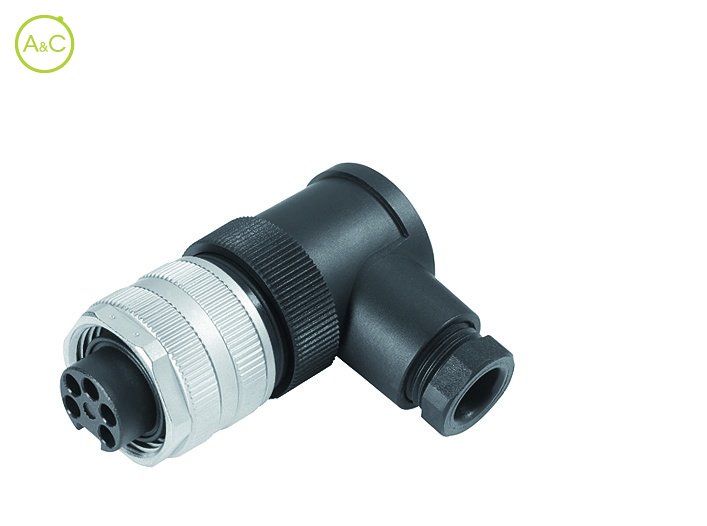

Female angled connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 2+PE
- 3+PE
- 4+PE
| Article Number | 99 2440 52 03 |

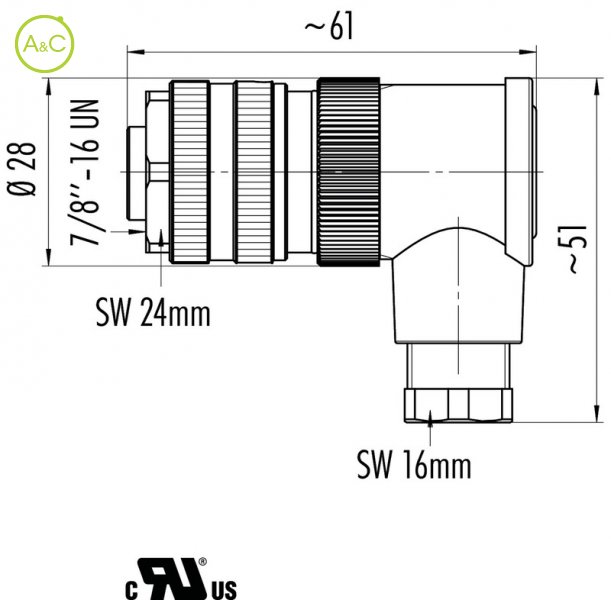

| Connector Diameter | 28 mm |
| Number Of Contacts | 2+PE contacts |
| Connector Locking System | Screw (7/8"-16 UN) |
| Termination | Screw |
| Wire Section | 1.5 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >50 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 300 (UL 600) |
| Rated Impuls Voltage | 4000 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | III |
| Material Group | III |
| Rated Current (40°) | 12 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PUR/PA (UL 94 HB) |
| Material Of Housing | PBT (UL 94 V-0) |
| Cable Outlet | 6-8 mm |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
