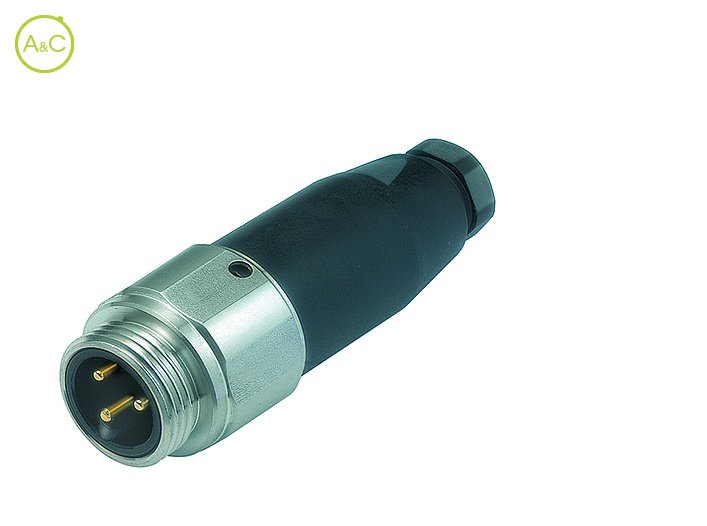

Male cable connector

  • Stainless steel locking ring
  • UL-approval

Number Of Poles

  • 2+PE
  • 3+PE
  • 4+PE
Article Number 99 2441 282 03

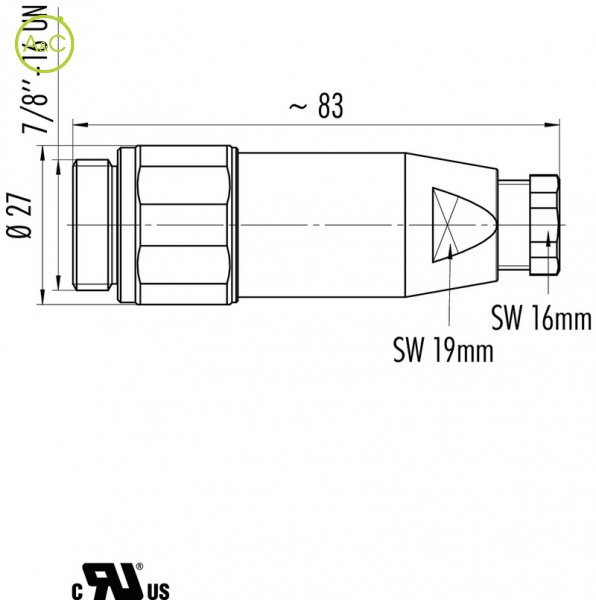

Connector Diameter 27 mm
Number Of Contacts 2+PE contacts
Connector Locking System Screw (7/8"-16 UN)
Termination Screw
Wire Section 1.5 mm²
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 300 (UL 600)
Rated Impuls Voltage 4000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 12 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PUR/PA (UL 94 HB)
Material Of Housing PBT (UL 94 V-0)
Cable Outlet 6-8 mm
Product sheet Download product sheet
Characteristics differ between variants of a connector
