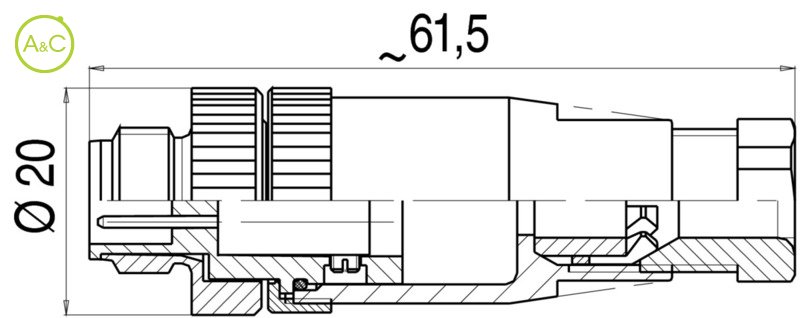

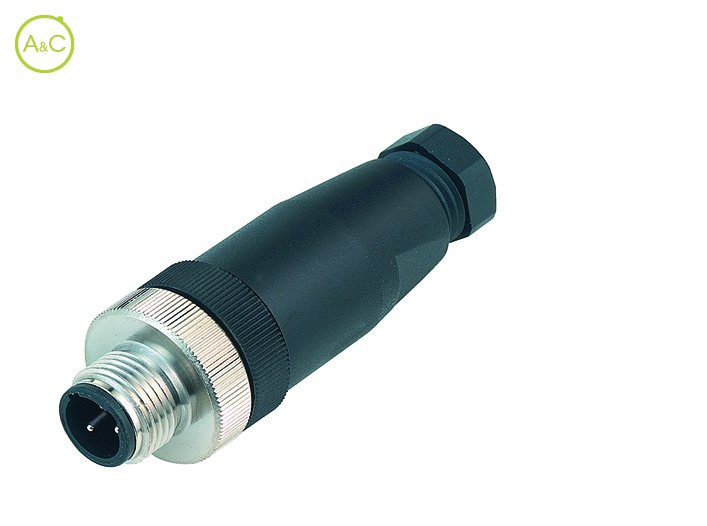

Male cable connector

  • M12 x 1

Number Of Poles

  • 2+PE
Article Number 99 2529 14 03
Connector Diameter 20 mm
Number Of Contacts 2+PE contacts
Connector Locking System Screw (M12-US)
Termination Screw
Wire Section 0.75 mm²
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 8 mΩ
Material Of Contact CuZn (Brass)
Plating CuSnZn (Optalloy)
Material Of Insert PA
Material Of Housing PA
Cable Outlet 4-6 mm
Product sheet Download product sheet
Characteristics differ between variants of a connector
