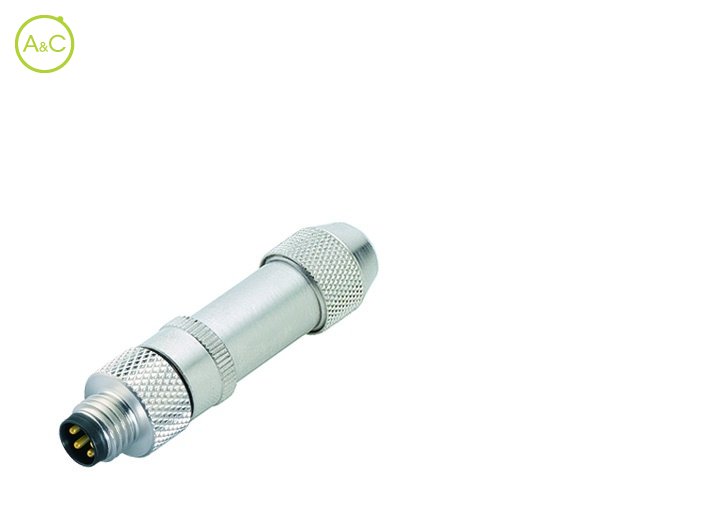

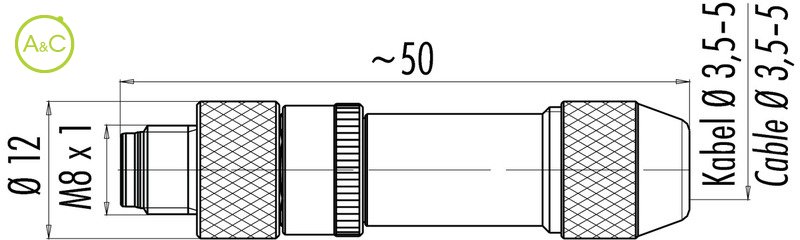

Male cable connector

  • Shieldable, solder

Number Of Poles

  • 3
  • 4
Article Number 99 3361 00 03 99 3361 25 03
Connector Diameter 12 mm 12 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M8) Screw (M8)
Termination Solder Solder
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP67 IP67
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 60 60
Rated Impuls Voltage 800 V 800 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA (UL 94 HB) PA (UL 94 HB)
Material Of Housing CuZn (Brass nickel plated) CuZn (Brass nickel plated)
Cable Outlet 3,5-5 mm 2-3,5 mm
Wire Gauge 24 AWG 24 AWG
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
