Male receptacle

  • for PCB assembly, straight
  • UL-approval

Number Of Poles

  • 4
  • 4 (with shielding sheet)
  • 5
  • 5 (with shielding sheet)
  • 8
  • 8 (with shielding sheet)
Article Number 99 3431 200 04

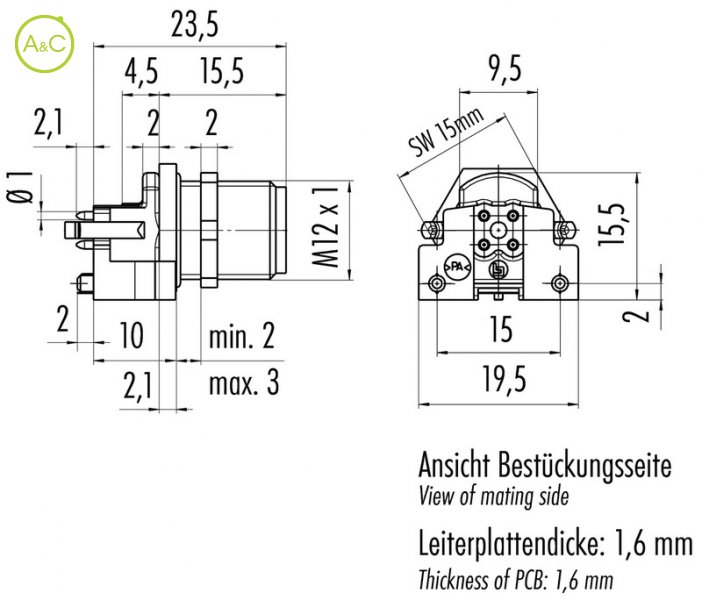

Connector Diameter 19.5 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Dip solder
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing CuZn (Brass nickel plated)
Product sheet Download product sheet
Characteristics differ between variants of a connector
