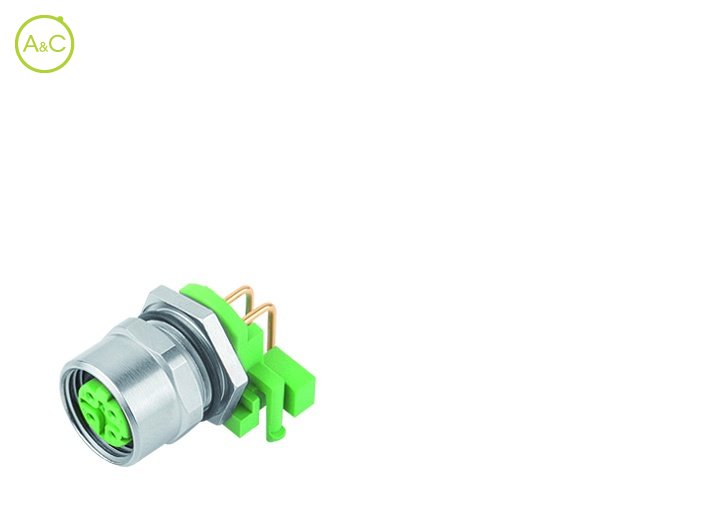

Female receptacle

  • for PCB assembly, angled
  • UL-approval

Number Of Poles

  • 4
  • 4 (with shielding sheet)

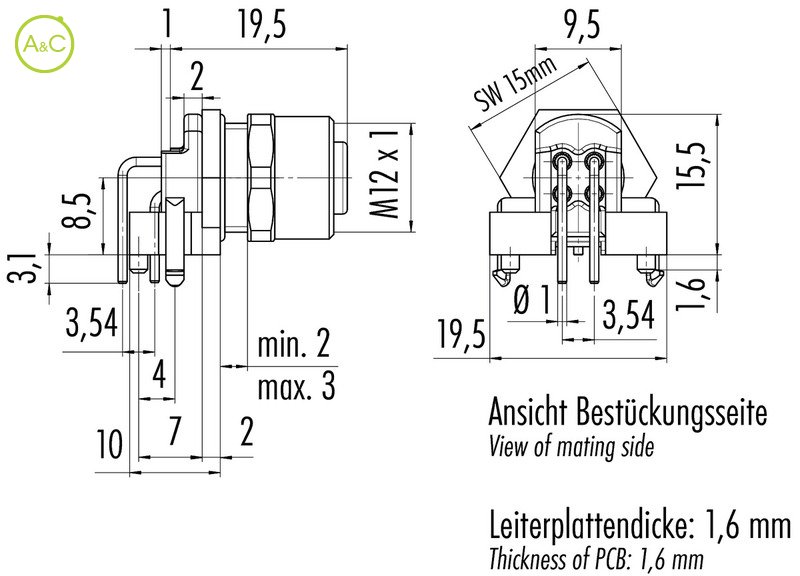

Article Number 99 3732 202 04
Connector Diameter 19.5 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-D)
Termination Dip solder
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing CuZn (Brass nickel plated)
Product sheet Download product sheet
Characteristics differ between variants of a connector
