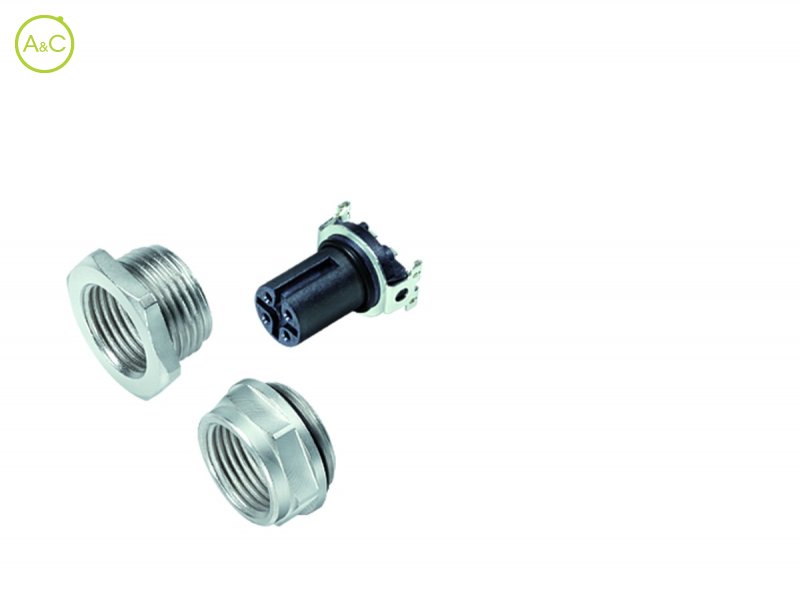

Female panel mount connector

  • SMT, with housing
  • Shieldable

Number Of Poles

  • 4
Article Number 99 3732 401 04 99 3732 402 04
Connector Diameter 19 mm 19 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-D) Screw (M12-D)
Termination SMT SMT
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Rated Current (40°) 4 A 4 A
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert LCP LCP
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
