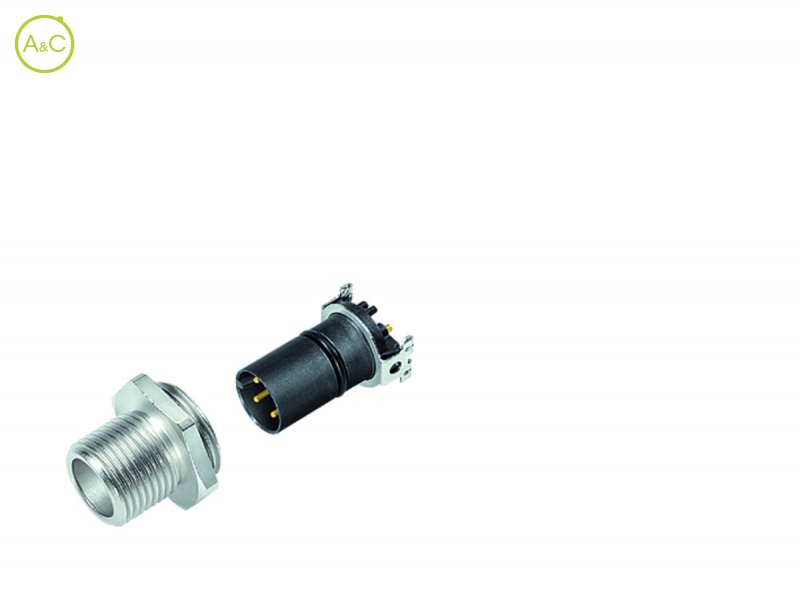

Male panel mount connector

  • SMT, with housing
  • Shieldable

Number Of Poles

  • 4
  • 5
Article Number 99-4431-401-04
Connector Diameter 20 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-B)
Termination SMT
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 4 A
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert LCP
Product sheet Download product sheet
Characteristics differ between variants of a connector
