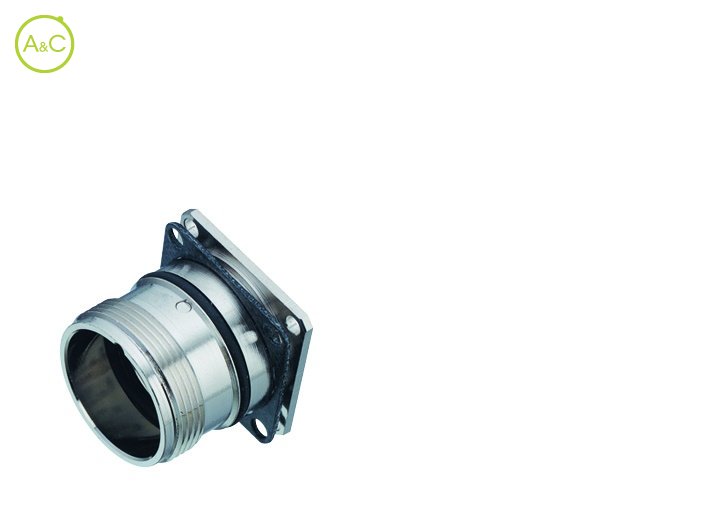

Female panel mount connector

  • Fastened from back side

Number Of Poles

  • 6
  • 9
  • 12
  • 16
  • 19
Article Number 99 4638 80 06

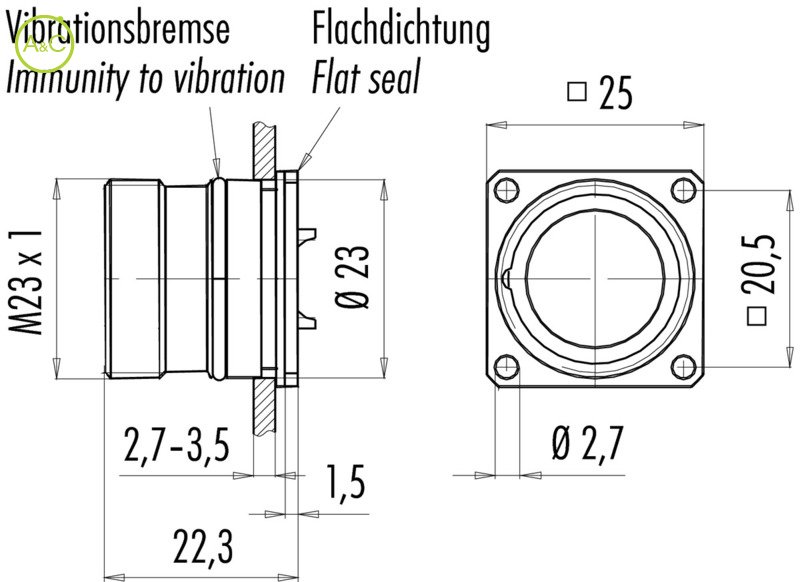

Connector Diameter 25 mm
Number Of Contacts 6 contacts, clockwise
Connector Locking System Screw (M23)
Termination Solder
Wire Section 2.5 mm²
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +125 °C
Lower Temperature -20 °C
Rated Voltage 300
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 20 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PBT/PA66
Material Of Housing Zinc die cast nickel plated
Product sheet Download product sheet
Characteristics differ between variants of a connector
