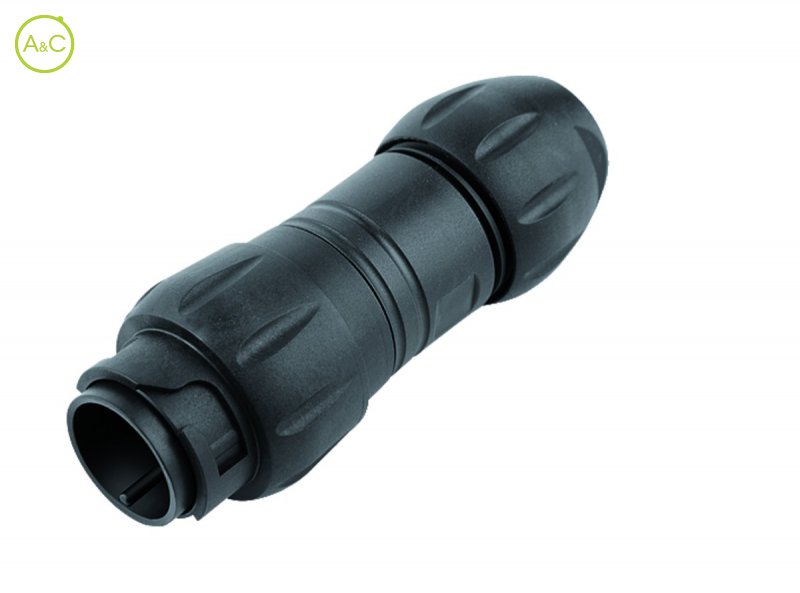

Male cable connector

  • with bayonet Locking

Number Of Poles

  • 4+3+PE
  • 4+PE
  • 12
Article Number 99 6501 000 08

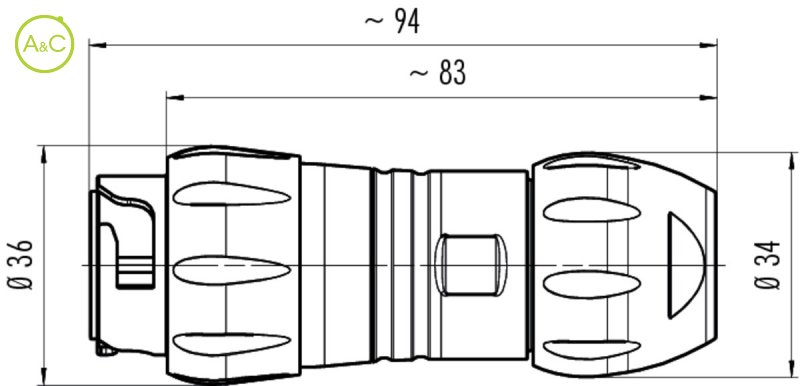

Connector Diameter 36 mm
Number Of Contacts 4+3+PE contacts
Connector Locking System Bayonet
Termination Crimp
Wire Section 0,14-2,50 mm²
Protection Degree IP68/IP69K
Mating Cycles >1000 times
Upper Temperature +100 °C
Lower Temperature -40 °C
Rated Voltage 60V Signal/ 400V Power
Rated Impuls Voltage 1000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group I
Rated Current (40°) 3 Signal, 25 Power (20A UL) A
Max. Contact Resistance >10 mΩ
Material Of Contact depending on crimp contact
Plating depending on crimp contact
Material Of Insert PA
Material Of Housing PA
Cable Outlet 7-17 mm
Wire Gauge 14-26 AWG
Product sheet Download product sheet
Characteristics differ between variants of a connector
