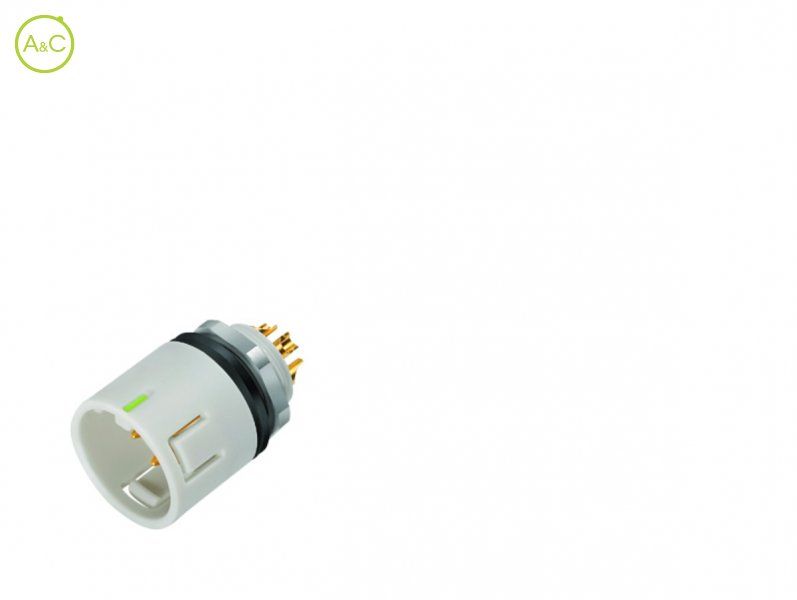

Male panel mount connector

  • with Solder termination
  • Lightgrey

Number Of Poles

  • 3
  • 5
  • 8
  • 12
Article Number 99 9107 400 03

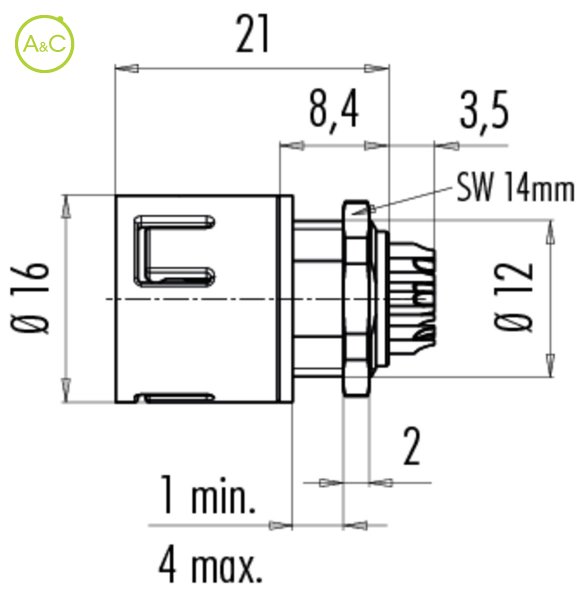

Connector Diameter 16 mm
Number Of Contacts 3 contacts
Connector Locking System Snap-in
Termination Solder
Wire Section 0.75 mm²
Protection Degree IP67
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 2
Overvoltage Categorie II
Material Group II
Rated Current (40°) 7 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 V-0)
Material Of Housing PA (UL 94 V-0)
Product sheet Download product sheet
Characteristics differ between variants of a connector
