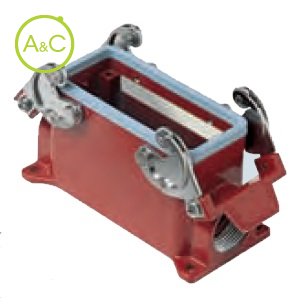

Surface mounting housings

  • With levers
  • Aluminium, 1xPG21

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

  • General
Article Number CAPR 24.21
Protection Degree IP65
Material Housing Aluminium
Height 81 mm
Length 144
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CNE…RY 24P+PE; CX…RY 4/8P+PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 180 °C
Position Cable Feed Side entry
Width 57 mm
Characteristics differ between variants of a connector
Accessoires
CHCR 24
Cover with 4 pegs
