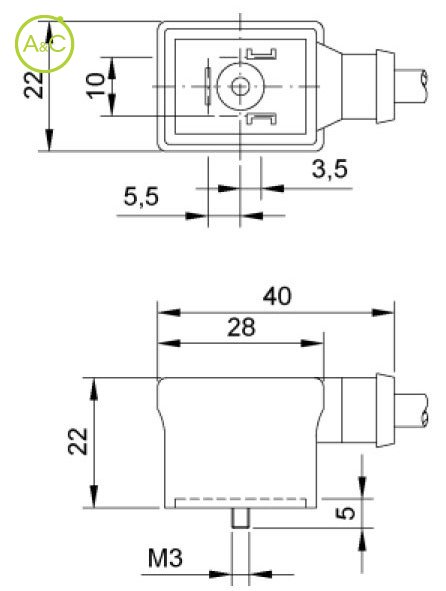

Style B rectangular connector

Red Led + varistor

CF - CF11 23A2R

CF - CF11 23A2R

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Housing Material

PUR
TPR

Article Number	CF13 23A2R 414 3000 0	CF13 23A4R 414 3000 0	CF13 23A6R 414 3000 0	CF13 23A9R 414 3000 0
Protection Degree	IP65*	IP65*	IP65*	IP65*
Upper Temperature	+70 °C	+70 °C	+70 °C	+70 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Contact Type	Fork	Fork	Fork	Fork
Circuits	Red Led + varistor	Red Led + varistor	Red Led + varistor	Red Led + varistor
Housing Oil Resistance	Very good	Very good	Very good	Very good
Housing Hardness	90 shore A	90 shore A	90 shore A	90 shore A
Other Characteristics	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron
Voltage Vdc	1 to 38	1 to 80	1 to 170	1 to 250
Voltage Vac	1 to 30	1 to 60	1 to 130	1 to 250
Max. Currrent	10 A @40°C	10 A @40°C	10 A @40°C	10 A @40°C
Clamping Voltage	38..104 V	80..165 V	170..340 V	320..640 V
Housing Colour	Transparent	Transparent	Transparent	Transparent
Remark*	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward

Article Number	CF11 23A2R 414 3000 0	CF11 23A4R 414 3000 0	CF11 23A6R 414 3000 0	CF11 23A9R 414 3000 0
Protection Degree	IP65*	IP65*	IP65*	IP65*
Upper Temperature	+70 °C	+70 °C	+70 °C	+70 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Contact Type	Fork	Fork	Fork	Fork
Circuits	Red Led + varistor	Red Led + varistor	Red Led + varistor	Red Led + varistor
Housing Oil Resistance	Occasional contact	Occasional contact	Occasional contact	Occasional contact
Housing Hardness	73 shore A	73 shore A	73 shore A	73 shore A
Other Characteristics	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron
Voltage Vdc	1 to 38	1 to 80	1 to 170	1 to 250
Voltage Vac	1 to 30	1 to 60	1 to 130	1 to 250
Max. Currrent	10 A @40°C	10 A @40°C	10 A @40°C	10 A @40°C
Clamping Voltage	38..104 V	80..165 V	170..340 V	320..640 V
Housing Colour	Black	Black	Black	Black
Remark*	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward

Characteristics differ between variants of a connector
