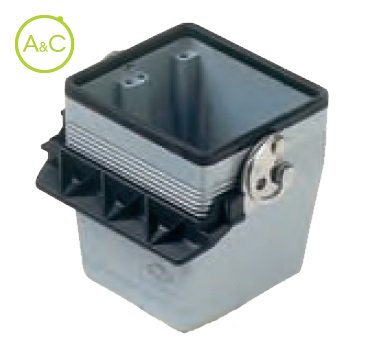

Hoods with one lever and gasket

  • Top entry, without adaptor
  • Aluminium, 1xPG36

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet
  • General
Article Number CFV 32 LG*
Protection Degree IP66
Material Housing Aluminium
Height 99.5 mm
Remark* Enclosure without adaptor, threaded on the body, to be used only with a complete cable gland
Length 153
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 82.5 mm
Characteristics differ between variants of a connector
Accessoires
CHC 32 L
Covers with 2 pegs
CHC 32 SL
Covers with 2 pegs
