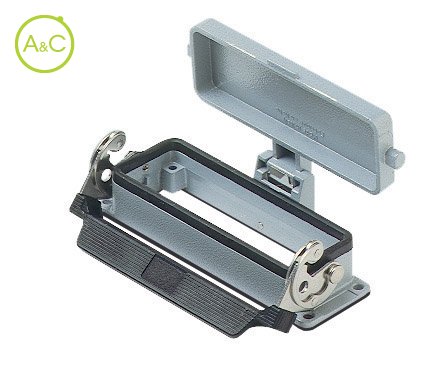

Bulkhead mounting housings

  • With single lever and cover
  • Aluminium

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet
  • General
Article Number CHI 24 LS
Protection Degree IP65
Material Housing Aluminium
Height 29 mm
Length 142.5
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CT-CTS 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CT-CTSE 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 45.5 mm
Characteristics differ between variants of a connector
