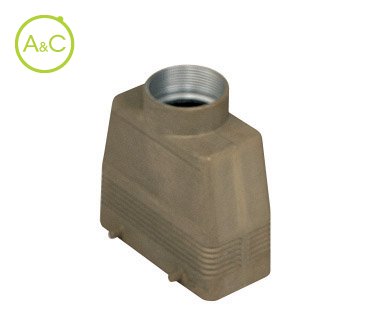

Hoods for electromagnetic compatibility with pegs

  • Top entry
  • Aluminium, 1xPG21

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet
  • General
Article Number CHVS 16
Protection Degree IP66
Material Housing Aluminium
Height 58 mm
Length 93.5
Extra Information Corrosion resistant
EMC Version
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDHS 27 P + PE; CX 6+12 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 43 mm
Characteristics differ between variants of a connector
Accessoires
CHCS 16 G
Cover for electromagnetic compatibility with 2 levers
