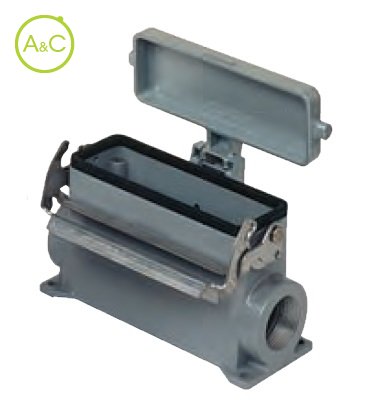

Surface mounting housings, high construction

  • With single lever in stainless steel and aluminium cover
  • Aluminium, PG entry

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

Entry

  • 1xPG21
  • 1xPG29
  • 2xPG21
  • 2xPG29
Article Number CVAP 06 LS
Protection Degree IP65
Material Housing Aluminium
Height 73 mm
Length 82
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Characteristics differ between variants of a connector
