Bulkhead mounting housings

  • With single lever in stainless steel and cover in aluminium
  • Aluminium

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet
  • General

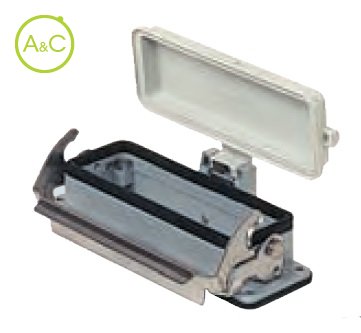

Article Number CVI 06 LS
Protection Degree IP65
Material Housing Aluminium
Height 29 mm
Length 82.5
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CT 6 P + PE; CTSE 6 P (16A)+ PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 45.5 mm
Characteristics differ between variants of a connector
Accessoires
CYG 06H06
1 branch-off T-Box coupling
CYG 06H06D
1 branch-off T-Box coupling
CYG 06H0610
2 branch-off T-Box coupling
CYG 06H1006
2 branch-off T-Box coupling
CYG 06H0606
2 branch-off T-Box coupling
