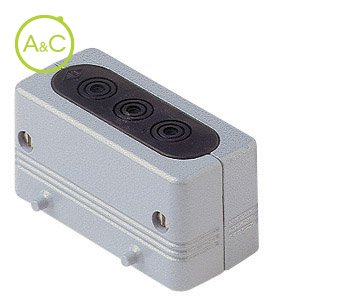

Cable passing hoods IP 54

  • With pegs for two levers
  • 3 holes for round cables Ø5 ÷13.5 mm

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet
  • General
Article Number CYR 16.3
Protection Degree IP54
Material Housing Aluminium
Height 47 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Housing Enclosures size 77.27 except T-Type series
Inflammability Class Of Insulation Material Acc. With Ul94 Other
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 43 mm
Characteristics differ between variants of a connector
