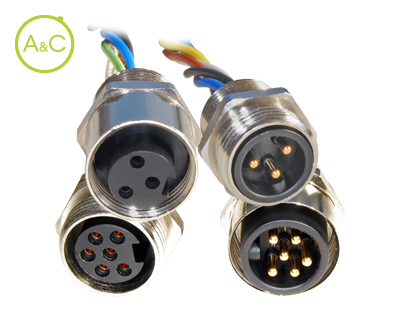

Female power receptacle

Download product sheet

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 14
Article Number HDEF 00201 6A7 0200 000 HDEH 00201 6A7 0200 000
Number Of Contacts 2 2
Protection Degree IP67 (only frontal side)* IP67 (only frontal side)*
Upper Temperature +80 °C +80 °C
Lower Temperature -40 °C -40 °C
Housing Material Nickel plated brass Nickel plated brass
Contact Material Golden over nickel plated CuZn Golden over nickel plated CuZn
Overvoltage Category II II
Voltage Vdc 1 to 600*** 1 to 600***
Voltage Vac 1 to 600*** 1 to 600***
Max. Currrent 12 A @40°C 12 A @40°C
Contact Gender F F
Thread Gender F M
Ground Pole No No
Max. Number Wires 2 2
Wire Colour bn1, bu2 bn1, bu2
Remark* The protection degree level is guaranteed only when correctly assembled with Shield's couterpart The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *** With polution degree 3, the maximum voltage is 300 Vac With polution degree 3, the maximum voltage is 300 Vac
Characteristics differ between variants of a connector
