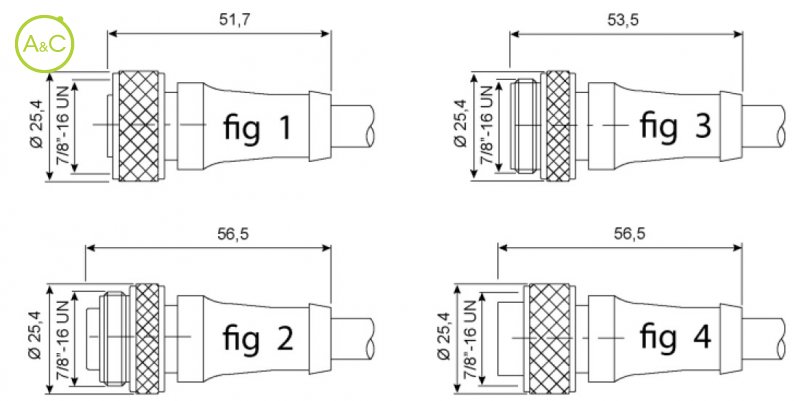

Female power connector

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Shield

Number Of Poles

Article Number	HDLF 00201 701 2000	HDLH 00201 701 2000
Number Of Contacts	2	2
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	TPU	TPU
Housing Oil Resistance	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Overvoltage Category	II	II
Voltage Vdc	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***
Max. Currrent	12 A @40°C	12 A @40°C
Contact Gender	F	F
Thread Gender	F	M
Ground Pole	No	No
Max. Number Wires	2	2
Wire Colour	bn1, bu2	bn1, bu2
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDLF 00309 704 2000	HDLH 00309 704 2000	HDLF 00339 703 2000	HDLH 00339 703 2000
Number Of Contacts	3	3	3	3
Protection Degree	IP65*	IP65*	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Housing Material	TPU	TPU	TPU	TPU
Housing Oil Resistance	Very good	Very good	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated	Brass nickel plated	Brass nickel plated
Overvoltage Category	II	II	II	II
Voltage Vdc	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Max. Currrent	12 A @40°C	12 A @40°C	12 A @40°C	12 A @40°C
Contact Gender	F	F	F	F
Thread Gender	F	M	F	M
Ground Pole	No	No	Yes	Yes
Max. Number Wires	3	3	3	3
Wire Colour	bn2, bu3, bk1	bn2, bu3, bk1	bn2, bu3, gn/ye1	bn2, bu3, gn/ye1
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDLF 00407 525 2000	HDLH 00407 525 2000	HDLF 00437 506 2000	HDLH 00437 506 2000
Number Of Contacts	4	4	4	4
Protection Degree	IP65*	IP65*	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Housing Material	TPU	TPU	TPU	TPU
Housing Oil Resistance	Very good	Very good	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated	Brass nickel plated	Brass nickel plated
Overvoltage Category	II	II	II	II
Voltage Vdc	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Max. Currrent	9 A @40°C	9 A @40°C	9 A @40°C	9 A @40°C
Contact Gender	F	F	F	F
Thread Gender	F	M	F	M
Ground Pole	No	No	Yes	Yes
Max. Number Wires	4	4	4	4
Wire Colour	bn3, wh4, bu2, bk1	bn3, wh4, bu2, bk2	bn3, bu2, bk1, gn/ye4	bn3, bu2, bk1, gn/ye4
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDLF 00508 577 2000	HDLH 00508 577 2000	HDLF 00538 538 2000	HDLH 00538 538 2000
Number Of Contacts	5	5	5	5
Protection Degree	IP65*	IP65*	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Housing Material	TPU	TPU	TPU	TPU
Housing Oil Resistance	Very good	Very good	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated	Brass nickel plated	Brass nickel plated
Overvoltage Category	II	II	II	II
Voltage Vdc	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Max. Currrent	9 A @40°C	9 A @40°C	9 A @40°C	9 A @40°C
Contact Gender	F	F	F	F
Thread Gender	F	M	F	M
Ground Pole	No	No	Yes	Yes
Max. Number Wires	5	5	5	5
Wire Colour	bn4, wh5, bu2, bk1, gy3	bn4, wh5, bu2, bk1, gy3	bn4, wh5, bu2, bk1, gn/ye3	bn4, wh5, bu2, bk1, gn/ye3
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDLF 006A0 424 2000	HDLH 006A0 424 2000	HDLF 00683 533 2000	HDLH 00683 533 2000
Number Of Contacts	6	6	6	6
Protection Degree	IP65*	IP65*	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Housing Material	TPU	TPU	TPU	TPU
Housing Oil Resistance	Very good	Very good	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated	Brass nickel plated	Brass nickel plated
Overvoltage Category	II	II	II	II
Voltage Vdc	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Max. Currrent	9 A @40°C	9 A @40°C	9 A @40°C	9 A @40°C
Contact Gender	F	F	F	F
Thread Gender	F	M	F	M
Ground Pole	No	No	Yes	Yes
Max. Number Wires	6	6	6	6
Wire Colour	din 47100 #A0	din 47100 #A0	n1-1, n2-2, gn/ye3, n3-4, n4-5, n5-6	n1-1, n2-2, gn/ye3, n3-4, n4-5, n5-6
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDLF 014C2 4H3 2000	HDLH 014C2 4H3 2000
Number Of Contacts	14	14
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	TPU	TPU
Housing Oil Resistance	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Overvoltage Category	II	II
Voltage Vdc	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***
Max. Currrent	4(Signal) 9(Common) A @40°C	4(Signal) 9(Common) A @40°C
Contact Gender	F	F
Thread Gender	F	M
Ground Pole	No	No
Max. Number Wires	14	14
Wire Colour	din 47100 #C2	din 47100 #C2
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Characteristics differ between variants of a connector
