IDC Connectors

  • With flat housing
Download product sheet

Number Of Poles

  • 9
  • 15
  • 25
  • 37

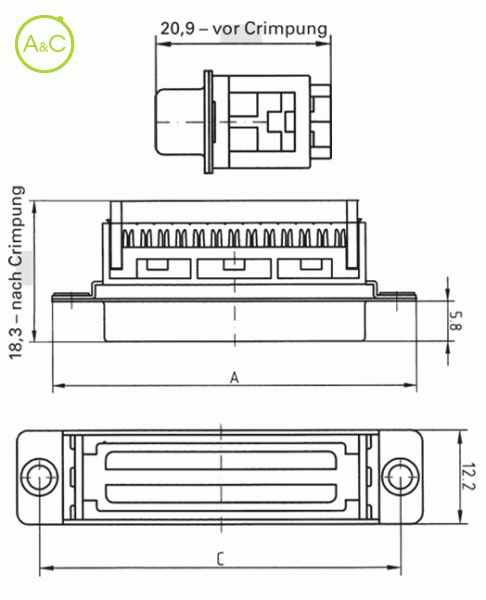

Article Number IDT 09 154 G3 IT 09 164 G3
Number Of Contacts 9 9
Upper Temperature + 125 °C + 125 °C
Lower Temperature -55 °C -55 °C
Contact Plating Gold over Nickel, or selective gold Gold over Nickel, or selective gold
Contact Material Brass and Copper alloy Brass and Copper alloy
Test Voltage 1 V ~ 1 V ~
Insulation Resistance 1010 MΩ 1010 MΩ
Extra Information With strain relief With threaded rivet on request Zinc plated metal housing With strain relief With threaded rivet on request Zinc plated metal housing
Current Rating 5 5
Contact Resistance ≤ 10 m ≤ 10 m
Gender Male Female
Insulator Material Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell Steel, tin-plated Steel, tin-plated
Mating And Unimating Force 0.3 - 0.7 0.3 - 0.7
Air And Creepage Distance ≥ 0.9 mm, VDE 0110 rated ≥ 0.9 mm, VDE 0110 rated
Termination Type IDC IDC
Quality Class Class 3 = 50 mating cycles Class 3 = 50 mating cycles
Usable Cable AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A
Characteristics differ between variants of a connector
