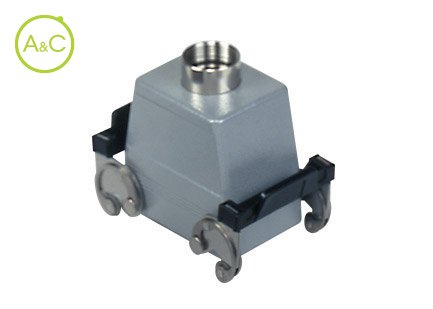

Hoods with 2 levers, high construction

Top entry
Aluminium, Metric entry

MAV 50 X25

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Entry

1xM25
1xM32

Article Number	MAV 50 X25*
Protection Degree	IP66
Material Housing	Aluminium
Height	92 mm
Remark*	May be combined with enclosures: CHI 50 CS; CHP 50 CS; MHP 50 CS
Length	82
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	71 mm

Article Number	MAV 50 X32*
Protection Degree	IP66
Material Housing	Aluminium
Height	92 mm
Remark*	May be combined with enclosures: CHI 50 CS; CHP 50 CS; MHP 50 CS
Length	82
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	71 mm

Characteristics differ between variants of a connector
