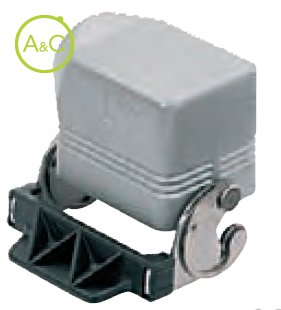

Hoods with 1 lever

Side entry, without gasket
Aluminium, Metric entry

MHO 06 LX20

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Entry

1xM20
1xM25

Article Number	MHO 06 LX20,*
Protection Degree	IP66
Material Housing	Aluminium
Height	47 mm
Remark*	May be combined with enclosure: CHI 06 LCS;CHI 06 LCP; CHI 06 LC
Remark**	Cannot be used with MIXO inserts
Length	76
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	43 mm

Article Number	MHO 06 LX25,*
Protection Degree	IP66
Material Housing	Aluminium
Height	47 mm
Remark*	May be combined with enclosure: CHI 06 LCS;CHI 06 LCP; CHI 06 LC
Remark**	Cannot be used with MIXO inserts
Length	76
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	43 mm

Characteristics differ between variants of a connector
