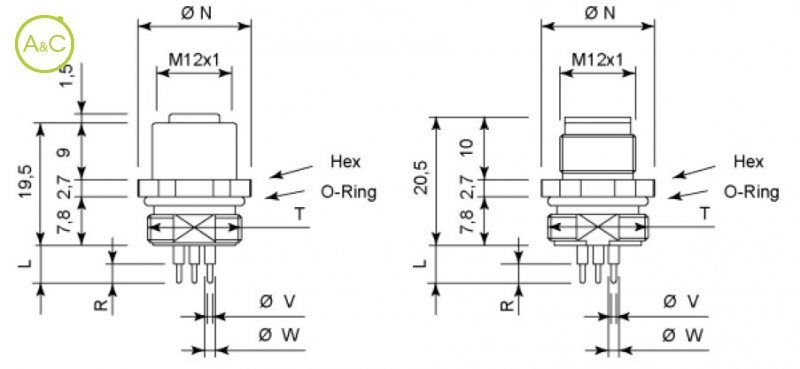

Male round receptacle

Download product sheet

Number Of Poles

  • 4
  • 5
  • 8
  • 12
Article Number RDEM 00400 000 W000 000
Number Of Contacts 4
Protection Degree IP67 (only frontal side)*
Upper Temperature +80 °C
Lower Temperature -40 °C
Fixing Thread M16
Housing Material Nickel plated brass
Contact Material Golden over nickel plated CuZn
Voltage Vdc 1 to 250
Voltage Vac 1 to 250
Max. Currrent 4 A @40°C
Contact Gender M
Coding A
Remark* The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Characteristics differ between variants of a connector
