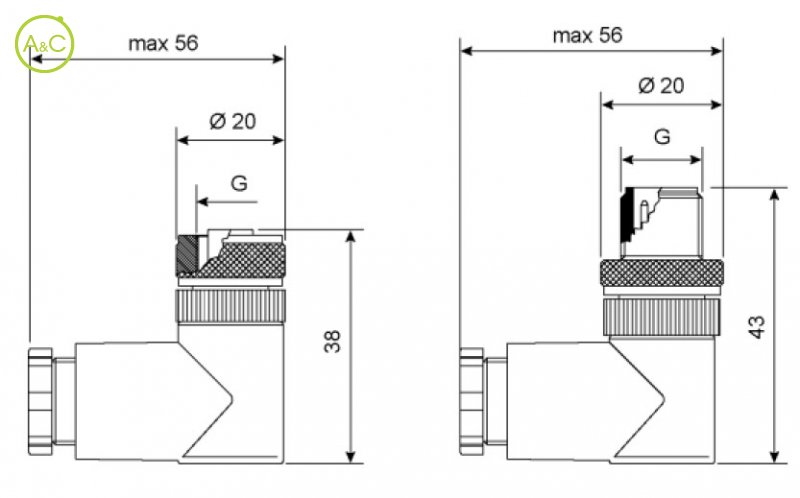

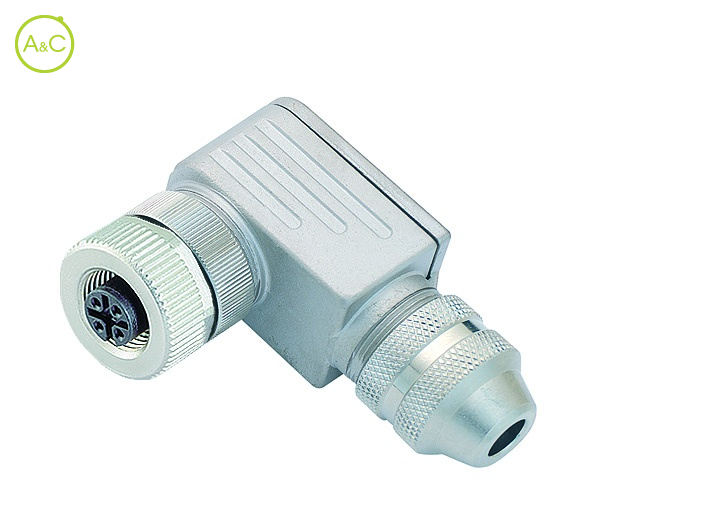

Female round connector

  • Whole nickel plated metal body
Download product sheet

Number Of Poles

  • 4
  • 5
Article Number RDKF 30410 090
Number Of Contacts 4
Protection Degree IP67*
Upper Temperature +90 °C
Lower Temperature -25 °C
Cable Diameter 6-8 mm
Fixing Thread M12
Housing Material Metal nickel plated
Housing Oil Resistance Very good
Contact Material Optalloy
Max. Wire Section 0,5 mm²
Locking Nut Material Metal nickel plated
Voltage Vdc 1 to 250
Voltage Vac 1 to 250
Max. Currrent 4 A @40°C
Contact Gender F
Coding A
Cabling System Spring
Remark* The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Characteristics differ between variants of a connector
