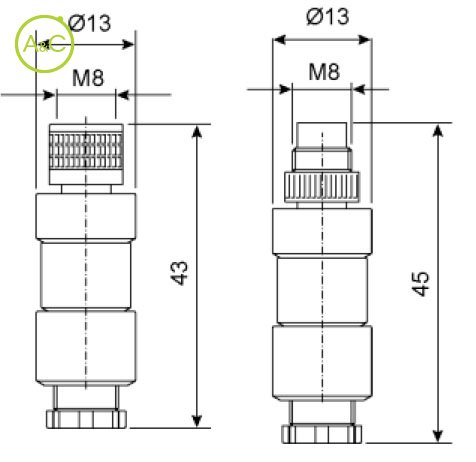

Female round connector

Download product sheet

Number Of Poles

  • 3
  • 4
Article Number REJF 00310 070 REJF 00311 070
Number Of Contacts 3 3
Protection Degree IP67* IP67*
Upper Temperature +90 °C +90 °C
Lower Temperature -25 °C -25 °C
Cable Diameter 3,5-5 mm 3,5-5 mm
Housing Material PA66 30%GF PA66 30%GF
Housing Oil Resistance Very good Very good
Contact Material Golden over nickel plated CuZn Golden over nickel plated CuZn
Max. Wire Section 0,5 mm² 0,25 mm²
Locking Nut Material Metal nickel plated Metal nickel plated
Voltage Vdc 1 to 60 1 to 60
Voltage Vac 1 to 60 1 to 60
Max. Currrent 3 A @40°C 3 A @40°C
Contact Gender F F
Ground Pole No No
Max. Number Wires 3 3
Coding A A
Cabling System Screw vite Solder
Remark* The protection degree level is guaranteed only when correctly assembled with Shield's couterpart The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Characteristics differ between variants of a connector
