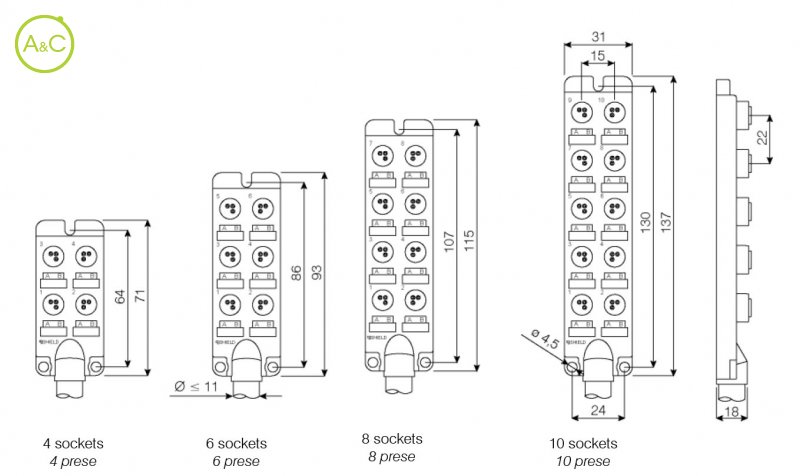

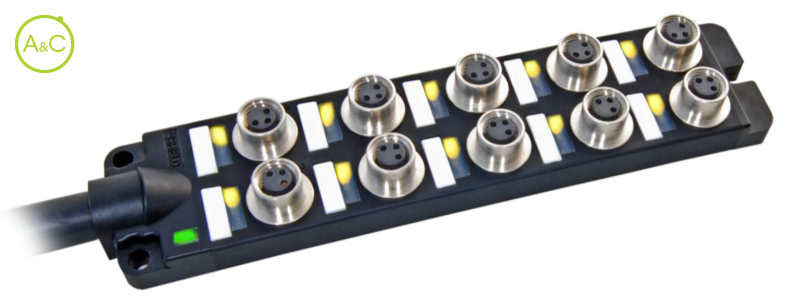

Top mounting, from 4 to 10 sockets, 1 signal each socket

  • With LED
Download product sheet

Socket Quantity

  • 4
  • 6
  • 8
  • 10
Article Number SF232N7 06100 243 5000
Number Of Contacts 3
Protection Degree IP65*
Upper Temperature +70 °C
Lower Temperature -25 °C
Housing Material TPU
Circuits With LED
Housing Oil Resistance Very good
Contact Material Nickel & golden plated CuZn
Locking Nut Material Brass nickel plated
Voltage With Pollution Degree 3 Vdc ** 10 to 30
Max. Currrent 6 A for common wires, 3 A each socket A @40°C
Control Type Cable
Coding A
Connected Terminals 1= V+, 3= V-, 4= A signal
Remark* The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark** The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution
Characteristics differ between variants of a connector
