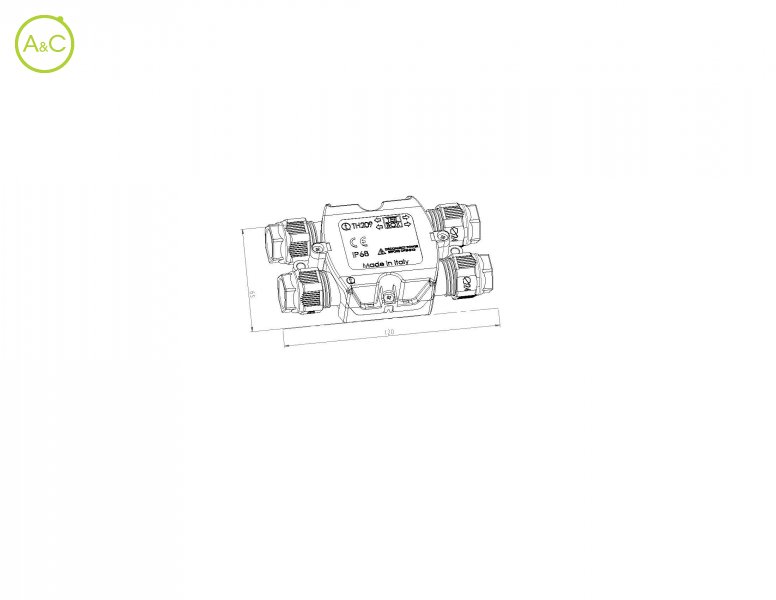

High protection Junction boxes empty and with terminal blocks

  • Waterproof
  • 4 cable glands
Download product sheet

Protection Degree

  • IP54
  • IP68
Article Number THA.209.A1A THA.209.B1A THA.209.C1A
Upper Temperature +125 °C +125 °C +125 °C
Lower Temperature -40 °C -40 °C -40 °C
Inner Dimensions 43 mm x 53.5 mm x 24 mm 43 mm x 53.5 mm x 24 mm 43 mm x 53.5 mm x 24 mm
Cable Diameter Min-max A 7,0 -14,0 mm 7,0 - 9,5 mm 7,0 - 9,5 mm
Cable Diameter Min-max B 7,0 -14,0 mm 7,0 -14,0 mm 7,0 - 9,5 mm
Terminal Block TH026 / TH029 / TH032 / TH027 TH026 / TH029 / TH032 / TH027 TH026 / TH029 / TH032 / TH027
Cable Entries/exits 4 ways 4 ways 4 ways
T Marking T85 16 A °C T85 16 A °C T85 16 A °C
Protection Degree Details 0,5 bar (5 m / 3 h) 0,5 bar (5 m / 3 h) 0,5 bar (5 m / 3 h)
Body PA66 UL94 V2 GWT 850°C black - grey RAL 7035 PA66 UL94 V2 GWT 850°C black - grey RAL 7035 PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Lock Nuts PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035 PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035 PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035
Grommets TPE TPE TPE
Co-moulded Seal Of Lid SEBS SEBS SEBS
Fixing Screws Of Lid M3 x 12,0 mm inox stainless steel M3 x 12,0 mm inox stainless steel M3 x 12,0 mm inox stainless steel
Standards TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance
Characteristics differ between variants of a connector
Accessoires
6000175CC
Terminal block mounting plate for TH209 series for use with TH027 terminal block
6000176CC
Terminal block mounting plate for TH209 series for use with TH026 terminal block
