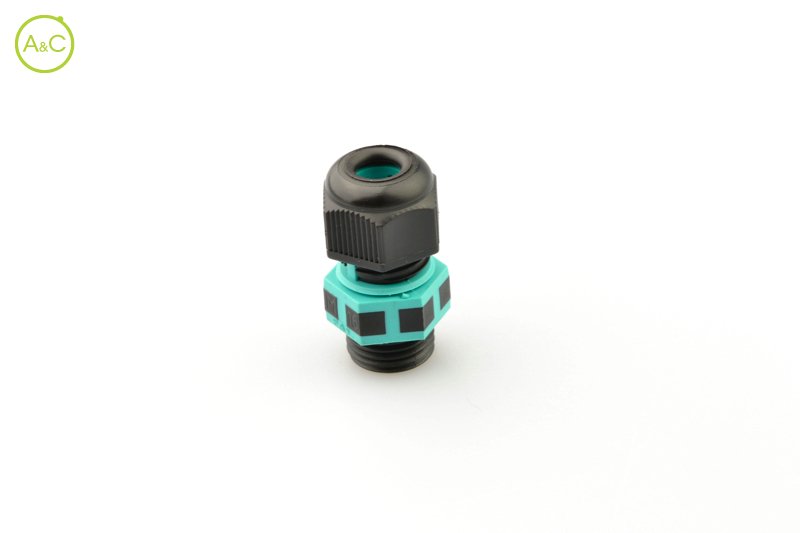

IP68 Co-moulded PG16 cable gland

  • 1 hole
Download product sheet

Cable Diameter

  • 7,0 - 10,5
  • 10,5 - 14,0
Article Number THA.451.B2A THA.451.B2E
Protection Degree IP68 IP68
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Thread PG16 PG16
Colour black grey RAL 7035
Min-max Cable Diameter 7,0 - 10,5 mm 7,0 - 10,5 mm
Protection Degree Details 5 bar (50 m / 1 h) 5 bar (50 m / 1 h)
Body PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035
Lock Nuts PA66 GF UL94 V0 GWT 960°C black - grey RAL7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL7035
Co-moulded Seals TPE grey RAL7001 TPE grey RAL7001
Standards EN50262:1998+ A1:2001 +A1:2004 EN50262:1998+ A1:2001 +A1:2004
Characteristics differ between variants of a connector
